Automatic Feed Metal Radial Drilling Machines Hc-1000

Automatic Feed Metal Radial Drilling Machines Hc-1000

US$7,000.00-15,000.00 1 set (MOQ)

Basic Info.

Model NO.
HC-1000
Layout
Vertical
Controlling Mode
Hydraulic
Number of Shaft
1
Hole Diameter
>200mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size
1050*700mm
Diameter of Spindle
220
Height of Column
2100
Spindle Hole
No.4
Motor of Spindle
1.5(2HP)*4p
Working Capacity
Drilling 38
Gross Weight
1380kg
Dimension
1600*750*2200
Transport Package
Wooden Package
Specification
1500*760*1950mm
Trademark
JOINT
Origin
China
HS Code
84592900
Production Capacity
35 Sets

Product Description

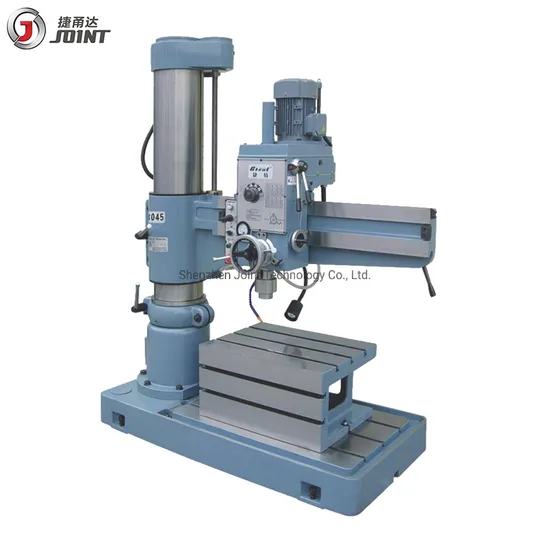

Automatic Feed Metal Radial Drilling Machines HC-1000
1. Strong drilling ability, Mehanna tough cast iron, high temperature tempering, rigid and tough.
2. The gear is made of alloy steel, by quenching and carburizing heat treatment.
3. The spindle is made of chrome-molybdenum, diamond,outstanding durability.
Specification
Model HC-1000
Distance between spindle centerandcolumn center
max 1000
min 250
Distance between spindle nose to base max 1120
min 330
Diameter of spindle E 220
Height of column F 2100
Max distance between spindle head to base G 2290
Floor space HXI 1500*700
Longitudinal travel of spindle head K 650
Up and down travel of radial ram L 580
Up and down travel of spindle M 210
Spindle hole MT No.4
Size of worktable mm 1050*700
Motor of spindle kw 1.5(2HP)*4P
Elevator motor of radial ram kw 0.375(1/2HP)*6P
Motor for clamping kw -
Spindle feed range mm/rev 0.06-0.20
Grade 3
Spindle rotation 60HZ rpm 88-1500
50HZ rpm 72-1243
Grade 6
Working capacity Drilling 38
Taping
(S45C)
16
Net Weight kg 1250
Gross Weight kg 1380
Dimension mm 1600*750*2200


Company Profile
Shenzhen Joint Technology Co., Ltd. specializes in R&D and manufacturing mold processing and machinery parts processing equipment, we developed high quality and high-tech research, development, manufacturing, service team and management system, and expanded products to more than 11 series from milling machines, to machine center,mechanical arm, automation. With the exceptional quality products and distinct brand reputation, our products are sold to more than 40 developed cities all over China, and also to more than 20 countries all over the world across Asia, Europe and America.Our company takes the high quality product as orientation, R&D ideas is to provide customers with the most suitable quality products, became a professional machine tool manufacturer with a complete product line of mould and parts processing machine tool and strong tailor-made design capability in China.
Core strengths
1. Standardize processes and operating mechanisms, high standards production and testing software and hardware - Ensure stable product supply and service support.
2. We insist in-depth research and technological precipitation for more than 20 years - Promote rapid innovation and progress in products and technology.
3. Comprehensive information management systems such as ERP and CRM - JOINT has formed a efficient operation and continuous improvement system.
4. Integrity, collaboration, innovation, and win-win spirit - we JOINT has established a strong and stable supply chain, and a large long-term win-win customer base.
Special advantages
1. Provide more practical customized products
2. Provide CNC product applications support
3. Provide integrated solution for auto production line
4. Provide integrated design of mold, and parts processing production line
Qualifications and honors
1. National High-tech Enterprose
2. Shenzhen famous brand "JOINT"
3. Member of China Quality Association
4. Member of China Machine Tools Association
5. Vice-chairmen of Shenzhen Machinery Association
6. CE certification on milling machine, grinidng machine and machine center.
7. More than 150 patents on invention, utility model patent and software copyright etc.
8. Guangdong famous trademark
FAQ
Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
