Brand New HDD Horizontal Directional Drill Xz360e

Product Description

Brand New HDD Horizontal Directional Drill Xz360e

Product Description

1,Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2,Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3,High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4,Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes(φ73), ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
5,Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices.

Parameter

Description	Unit			Parameter value
Engine	Manufacturers			Dongfeng Cummins
	China III	Model		QSB5.9-C210
		Rated Power	kW /(r/min)	154 / 2200
	China II	Model		6BTAA5.9-C205
		Rated Power	kW /(r/min)	153/ 2200
	China III	Model		QSB6.7-C220
	EU Stage IIIA	Rated Power	kW /(r/min)	164/2200
Thrust-Pull	Type			Pinion and rack drive
	Max thrust-pull force		kN	370/370
	Max thrust-pull speed		m/min	32
Rotation	Type			four motor
	Torque		N·m	13200
	Max spindle speed		r/min	140
Loader Crance	/			/
Max inclination angle	°			20
Pipe	Diameter × Length		mm×mm	Φ73/83×3000
Mud pump	Max Flow rate		L/min	400
	Max pressure		MPa	8
Weight	kg			10500

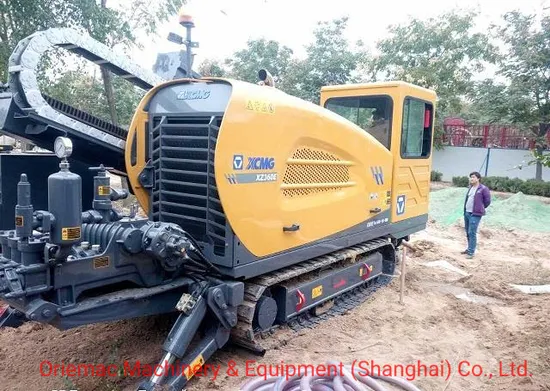

Product Show
