Aluminum Doors and Windows Fully Automatic Assembly Production Center

Product Description

Jinan SETH Intelligent Equipment Co.Ltd.
aluminum doors and windows fully automatic assembly production center Product Description
Features:
☆ suitable for industrial aluminum alloy profile, doors and windows, curtain wall aluminum alloy profile of the round hole, slot hole,
lock hole, special-shaped hole, as well as aluminum profile milling, chamfering, plane carving and other processes.
☆ spindle adopts air-cooled spindle, power 6 kw, speed 0~18000 rpm, high precision, good safety and high reliability.
☆ adopt CNC numerical control system. Equipped with professional CAD-CAM programming software. Automatic conversion processing
G code, simple operation, high efficiency, low labor intensity.
☆ The motion pair adopts the imported guide rail, the slider, the X shaft adopts the high precision helical gear, the helical tooth strip
transmission, the Y shaft, the Z shaft adopts the high precision ball wire to carry the transmission. Smooth transmission, effectively improve
the accuracy of the whole machine.Flip the
☆ table 180 degrees. -90 degrees ~0 degrees ~+90 degrees, profile clamping can achieve three-sided processing
☆ processing deep hole (special hole), through the table flip to achieve deep hole processing,improve efficiency, good quality.
☆ manual pump oil supply system, tool system control spray cooling device.
☆ main electrical parts, circuit breakers, AC contactors are using French S chneider products.
☆ main parts of the machine tool adopt steel structure after aging treatment.
Main parameters:

Power supply	380V 50Hz
Total power	6.5 Kw
Main shaft power	S1:3.5kw
Working pressure	0.6~0.8 MPa
Maximum speed	rpm 18000
X axis travel	mm 1500
Y axis travel	mm 500
Z axis travel	350 mm
X axis velocity	50000 mm/min
Y axis, Z axis velocity	15,000 mm/min
Dimensions	2380*2000*2200mm
Weight	About 950 kg

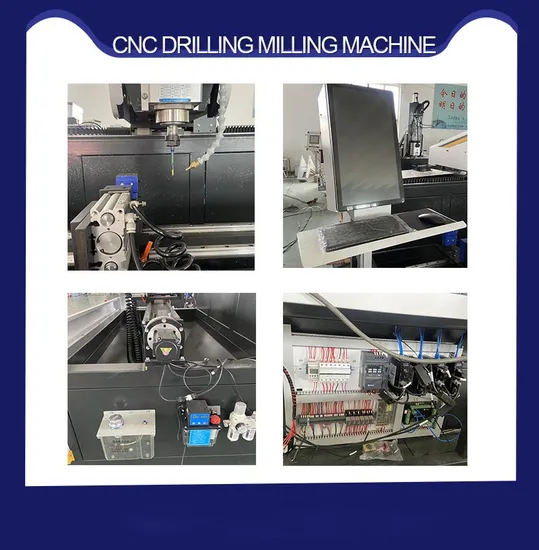

Detailed Photos
Relative Products
Company Profile
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,
curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can
also be customized according to customer requirements of different grades of products.
Our company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE
certifications, excellent product design and development engineers, skilled production engineers, experienced
production management team and after-sales service that providing you with a strong guarantee.
We have all kinds of equipment processing workshop, assembly workshop and quality inspection center, can
independently realize the design of equipment, processing,assembly, test one-stop flow operation, to ensure the
excellent quality of equipment.
Our main products including aluminum&uPVC profile machining center, saw machine,milling machine,welding machine,
corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle,
Please join hands with SETH to lead intelligence.
