Asrs Four-Way Shuttle System Heavy Duty Higher Automation Warehouse Storage Steel Shuttle Racking

Product Description

ASRS Four-Way Shuttle System Heavy Duty Higher Automation Warehouse Storage Steel Shuttle Racking Product Description
Although there are many mature solutions for high-density, multi-depth pallet warehouse storing, like Radio Shuttle System, Stacker Crane plus Satellite System, Mother & Baby Shuttle (satellite) System, but space are still left for more specific market and industries. Since 2016, HYD team had input research and development on Four Way Pallet Shuttle for exploring more flexibility and further expansion in fully automatic pallet storing and retrieval system. 5 years past, we are proud to say that our four way shuttle had been iteratively updated to the third generation, which is faster, thinner and more accurate.

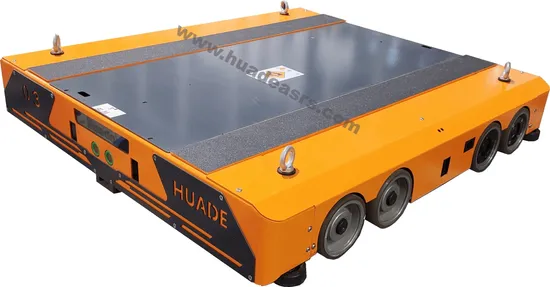

HUADE Four Way Pallet Shuttle Specification:

ITEM	Shuttle Body (L*W*H )	Pallet Dimension
Standard Shuttle Dimension	1100L*980W*150Hmm	1200W*1000D
	1200L*980W*150Hmm	1200W*1100D
	1300L*980W*150Hmm	1200W*1200D
Self Weight	450kg
Loading Capacity	1000kg
Lifting Distance	40mm, ≤5s
Working Temperature	0-40ºC
Communication Mode	Wireless AP
Power Supply	lithium battery, 48V36 /45 /60AH	≥8H continuous work
Driving Speed (empty)	1.5m/s
Driving Speed (load)	1.0m/s
Acceleration	0.3m/S2
Battery Service Life	2000 charging times	1.5-2H charging time
Addressing	Laser, ±2mm

HUADE latest four way shuttle transport technology (rack entry vehicle) enables these multiple deep pallets at any level can be accessed. The solution can be applied into a smaller building footprint, and in return less impact on its surrounding environment.
Typical Four Way Pallet Shuttle Components:
All system components of Four Way Shuttle ASRS are designed, engineered and manufactured by ourselves to ensure system compatibility and long useful life. Our hardware over time has resulted in enhanced safety and design plus advanced technology and functionality, providing you with a unique, automated, high density storage solution.
HUAYIDE believes that in the ASRS solution, "software defines hardware", and software determines the fluency and cooperation of hardware. Hence four way pallet shuttle system is built on our own WMS & WCS, which realizes the dynamic management of stored items in the warehouse to ensure that the physical inventory is consistent with the account. Along with real-time data transmission with ERP, WMS assesses orders, inventory, labor and material handling systems to effectively execute order fulfillment. From storage to picking and all the way through shipping, WMS determines the most productive flow and resource allocation. We also provide accurate zone visibility of downstream capacities, destination availability & each equipment status to most effectively utilize your warehouse storage space.
Applications of 4 Way Shuttle

Main Racking Product
Huade Shuttle Family

FAQ
Q. What we do ?
Pallet Type Automated Storage and Retrieval System (Unitload AS/RS)
Box/ Container/ Crate/ Case Type Automated Storage and Retrieval System (Miniload AS/RS)
Shuttle Storage & Sequencing system
Rack-supported building type AS/RS
Semi-automated Radio Shuttle System
Electrical Mobile Racking System
Floor conveying & sortation system
Automatic Truck/Trailer Loading System
In HUAYIDE, you'll get turnkey solutions for engineering & consulting , design & manufacturing, implementation & training, commissioning & after-sale service. With the best throughput capacity to really in-house all your warehousing requirements, grow your business in a cost effective way.
Q. Why choose us?
Complete mastery of the process
Self-developed, engineered, produced and installed;
Very competitive pricing
Manufacturing in Asia save you up to 50%!
Integrated by us save you up to 25% more!
Successful cases backup
Projects in various industries ready for you to visit;
We upgrade on existing successful experience;
High-efficient
Instant communication are available 24/7/365;
Solutions for RFQ shall be obtainable within 36 hours;
Professional team work
We care and carry out your every single requirement;
We trained our engineers to speak English;
Reliable & Flexible
We study your market local regulations to comply with;
Credible backup documents for your evaluation;
Q. How we work?
Step 1 Define
HUAYIDE Solutions' engineers work with project stakeholders to determine project objectives
Step 2 Measure
Information is collected to help our engineers better understand your business.
Step 3 Analyze
Analyze data from your operating systems and create models that predict future states
Step 4 Design
Analyze data from your operating systems and create models that predict future states.
Step 5 Validate
System costs are estimated and a complete analysis is done to determine feasibility of each alternative.
Step 6 Client Presentation
Client is given final presentation of costs and best solution.
