WPC Window Profile Machine / PVC Winows Plastic Machine

Product Description

PVC Window Door Frame Making Machine
1.PVC Window & Door Profiles : 60 65 70 casement series, and 60 80 88 92 112 sliding
2.This PVC profile machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
3.PVC Window Profiles : Three rails frame , Fixed window frame , Sliding Sash, Mullion , seal edge , single glass bead , screen sash.
Product Description
1. It is designed for producing various size of plastic composite products,such as WPC profiles,WPC board,WPC decorate panel.Our WPC machine has features of low consumption,low noise,stable running..
2. This WPC machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
3. The extruder of WPC machine adopt special wpc screw and barrel for extrusion.With different mould,WPC machine can produce wpc products with different shapes.
Flow Process
1.PE/PP WPC profile production flow
Wood milling(wood powder,rice husk)-- Mixer(plastic+wood powder)--Pelletizing machine--PE/PP-WPC extrusion line
2.PVC-WPC profile production flow
Wood milling(wood powder,rice husk)--Mixer(plastic+wood)--PVC-WPC extrusion line
Product Parameters

Model	YF180	YF300	YF600	YF800	YF1000
Max.width of product(mm)	180	300	600	800	1000
Extruder mode	SJZ51/105	SJZ65/132	SJZ80/156	SJZ80/156	SJZ92/188
Extrusion capacity(kg/h)	150	180	360	360	600
Motor power(kw)	18.5	37	55	55	110
Total length(m)	18	22	26	28	32

Machine list

Item	Quantity
1.SJSZ series conical twin screw extruder with auto feeder	one set
2.Die mould (designed as per custoemr sample or sample drawings)	one set
3.Vacuum calibration table	one set
4.Haul-off unit	one set
5.Cutting unit	one set
6.Stacker	one set
7. Electric Control System	one set
8. Spare parts	one set

Detailed Photos

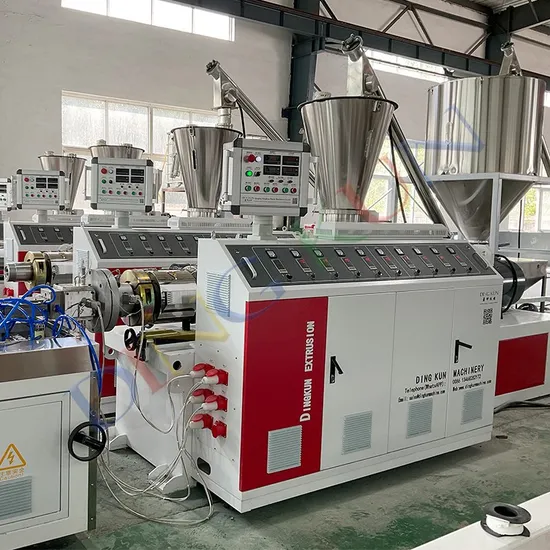

1.SJZ series conical twin screw extruder:
The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
2.Vacuum calibration table:
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
4.Haul off & Cutter unit :
Hot Recommend

Packaging & Shipping
Certifications

After Sales Service
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.
