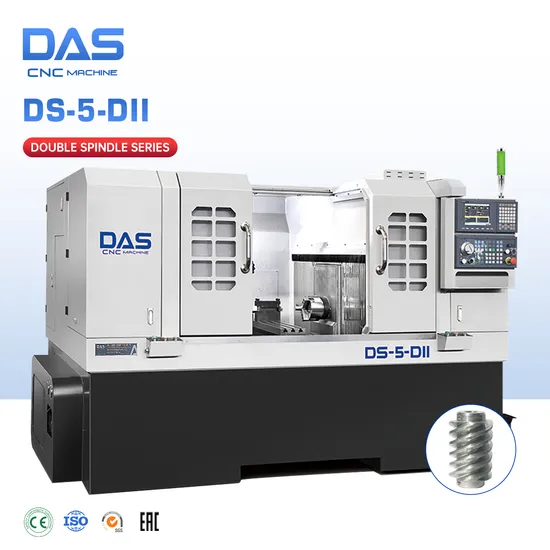

Double Series Dual Spindle Dual Channel Fixed Tool CNC Lathe Ds-5-Dii
Basic Info.
Model NO.
DS-5-DII
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Plywood Case
Specification
3000*1600*2000
Trademark
DAS
Origin
China
HS Code
8458110000
Packaging & Delivery
Package Size
3200.00cm * 1800.00cm * 2200.00cm
Package Gross Weight
4500.000kg
Product Description
| Processing range | Max swing diameter | mm | 400 |
| Max cutting length | mm | 179 | |
| Max turning length | mm | 150 | |
| Spindle | Spindle nose | / | A2-4 |
| Spindle bore | mm | 46 | |
| Spindle speed | r/min | 0-4500 | |
| Spindle motor power | kw | 5.5 | |
| Sub-spindle | Sub-spindle nose | / | A2-4 |
| Sub-spindle bore | mm | 46 | |
| Sub-spindle speed | r/min | 0-4500 | |
| Sub-spindle motor power | kw | 5.5(electric spindle) | |
| Sub-spindle cartridge type | / | 163E push forward type | |
| Tool | Tool installation | - | Gang-type |
| pcs | 8 | ||
| Tool holder size | Square tool holder | 20*20 | |
| Round hole tool holder | 20 | ||
| Drive axis | X1 / Z1 axis travel | mm | 800/200 |
| X2 / Z2 axis travel | mm | 800/200 | |
| X/Z axis fast moving speed | m/min | 24/24 | |
| X1 /Z1 servo motor | kw | 0.85/0.85 | |
| X2/Z2 servo motor | kw | 0.85/0.85 | |
| Others | Minimum system resolution | mm | |
| Motor power of hydraulic station | kw | 1.5 | |
| Coolant tank capacity | L | ||
| Tool holder center height | mm | 90 | |
| Water pump motor power | w | 0.75 | |
| Machine power | kw | 19 | |
| Weight | kgs | 4500 | |
| Machine size (L*W*H) | mm | 3000*1600*2000 |
| Name | Specification |
| Automation devices | Customized automation according to customer's workpiece, robotic arm/robot and other solutions |
| Tool setter 6"/8"/10" | Renishaw |
| Oil mist collector | Domestic brand |
| Oil-water separator | Domestic and imported brands |
| Air gun | National brand |
| Cooling gun | National brand |
