Juzheng Industrial Conveyor Tunnel Rejection Function Food Bags Metal Detector Machine

Product Description

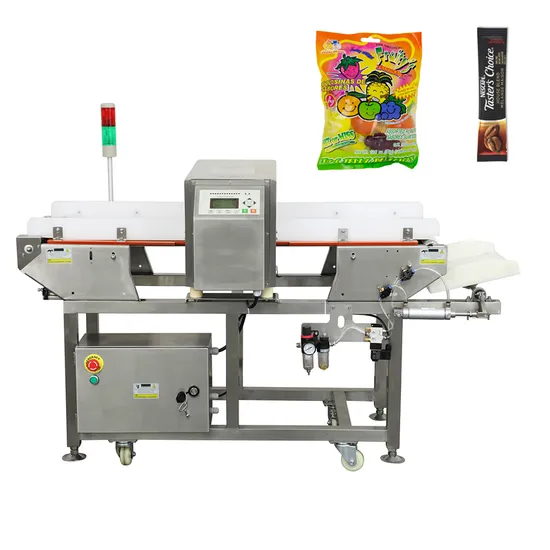

Juzheng Tunnel Type Conveyor Belt Metal Detectors with Drop Flap Rejection
Introduction:
The Juzheng's digital metal detector works on the Eddy Current principle. The referred principle over comes the limitation of the magnet - which is standard practice to detect and collect the external metal contamination. After decades of development, Juzheng developed four types of metal detectors as follows:
- Pharmaceutical type
- Conveyor type
- Vertical fall type
- Pipeline type
XR-980 with 3.2'' LCD screen with buttons,it can store 100 products parameters to meet daily detection requirements.Customizable tunnel size according to product's dimension,also customizable operation language and logo.

Besides, Juzheng's metal detector can be used with checkweigher machine to be a combo system. WHAT THE SPECIFICATIONS OF MACHINE?

Model#		XR-980		XR-506		XR506-3
Conveyor Height from Ground (can be customized)		680mm ± 30mm		680mm ± 30mm		680mm ± 30mm
Memory function		Store 100 product parameters		Store 207 product parameters		207 product parameters
Operation Panel Languages		English, Spanish, Portuguese, Turkish, Japanese, Chinese		English, Spanish, Japanese, Chinese		English, Spanish, Japanese, Chinese
LCD Screen		3.2''LCD screen with push buttons		7'' Full Color touchable screen		7'' Full Color touchable screen
Tunnel width(mm)		400(Standard ) ;Customized(Nonstandard)
Tunnel height(mm)		100	120	150	200	250	300	350	400
Detection Sensitivity	Fe(mm)	≥0.6	≥0.8	≥1.0	≥1.5	≥1.5	≥2.0	≥2.5	≥3.0
	Non-Fe (mm)	≥1.0	≥1.2	≥1.5	≥2.0	≥2.5	≥3.0	≥3.5	≥4.0
	SUS304 (mm)	≥1.2	≥1.5	≥2.0	≥2.5	≥3.0	≥3.5	≥4.0	≥4.5
Material of Construction	SUS 304
Conveyor Belt	Standard: White PVC Belt Optional: Food-grade white PU belt
Conveyor Direction	From left to right (face to the operation panel)
Power Supply	Alternating current 110V/120V/380V(+10%,-15% 50/60Hz)
Buttons	Standard: Emergency Stop Button Optional: Start/Stop Buttons
Working Temperature	0ºC - 40ºC
Humidity	Below 90% Relative humidity (without condensate)
Customized service	1.Detection Tunnel Size; 2.Rejection system: Pusher, Air jet, Drop down and Diverter for optional; 3.Conveyor direction; 4.Conveyor belt: Food grade white belt, Plate chain conveyor; 5. Conveyor Speed: Consistent / Adjustable; 6. USB Data Exporting.
Remark	The actual performance may be subject to working environment and components of the products to be tested.
