Pressure Vessel Vertibale Liquid Argon Liquid Nitrogen Lco2 LNG Storage Vessel Liquid Oxygen Cryogenic Tanks

Product Description

Product Description

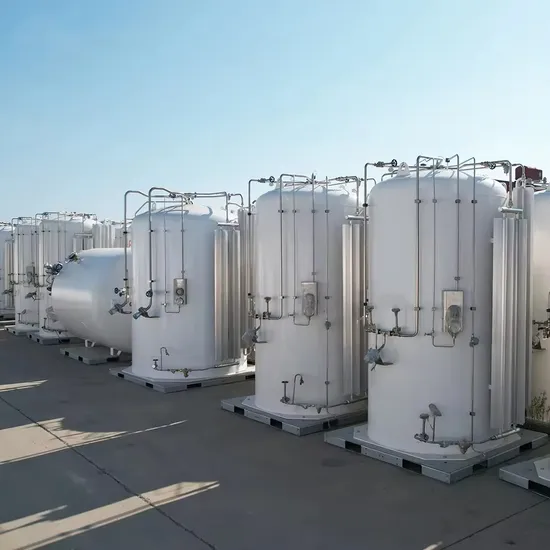

Micro bulk tank liquid storage tank is a small-sized gas consumption equipment with fixed base, high vacuum multi-layer insulation cryogenic storage tank. Integrated with low-temperature liquid filling, self-pressurized vaporization and other systems. At present, micro bulk tank small cryogenic tank, as a simple and convenient new gas supply mold has been widely promoted and used and replaced the using of steel cylinders and Dewar cylinders on some level. With mature production technology, HuaYu is providing customers with advanced micro bulk tank products.

Volume(m3)	Working Pressure(MPa)	Working medium	Dimension(mm)	Net Weigh (kg)
1m3	1.6	LO2,LN2,LAr,LNG	1300*1300*2326	720
	2.5	LO2,LN2,LAr,CO2	1300*1300*2326	720
	3.4	LO2,LN2,LAr	1300*1300*2326	1096
2m3	1.6	LO2,LN2,LAr,LNG	1750*1750*2741	1440
	2.5	LO2,LN2,LAr,CO2	1750*1750*2741	1560
	3.4	LO2,LN2,LAr	1600*1600*2390	1780
3m3	1.6	LO2,LN2,LAr,LNG	1850*1850*2869	1814
	2.5	LO2,LN2,LAr,CO2	1850*1850*2869	1990
	3.4	LO2,LN2,LAr	1850*1850*2869	2408
5m3	0.8	LNG	2300*2300*3160	2426
	1.6	LO2,LN2,LAr,LNG	2150*2150*3095	2757
	2.5	LO2,LN2,LAr,CO2	2150*2150*3095	3102
	3.4	LO2,LN2,LAr	2150*2150*3095	3483
7.5m3	1.6	LO2,LN2,LAr,LNG	2350*2350*3210	4326

Production Workshop

Company Profile
Hebei Huayu Environment Engineering Co., Ltd. is an emerging high-tech enterprise specializing in the design, manufacturing and R & D of low-temperature pressure vessels. The company's leading products include low-temperature welded insulation bottles, low-temperature storage tanks, D1 and D2 pressure vessels. With an annual output of more than 40000 low-temperature bottles and more than 2000 storage tanks. The company has professional production and testing equipment at home and abroad, such as large-scale hydraulic tilting plate bending machine, full-automatic NC four roll plate bending machine, full-automatic NC longitudinal seam and circumferential seam welding machine, vacuum pumping unit, NC winding machine, electrostatic spraying, helium mass spectrometer leak detector, spectrum analyzer, full-automatic ultrasonic flaw detector, magnetic powder flaw detector, X-ray digital imaging system and so on.

Certifications
Packaging & Shipping

FAQ
Q1:Are you manufacturer?
A1:Yes, we're an experienced manufacturer.

Q2:Can we use our LOGO and design?
A2:Of course, we offer OEM/ODM service.

Q3:What's the sample cost?
A3: The sample and shipping charges will be required.
Once the mass production order is placed, the sample charges will be deducted.

Q4:Do you inspect the finished products?
A4: Yes, each step during production will be inspected by our Qc team.

Q5:What's the payment term?
A5:TT,LC,Paypal, Western Union.

Q6:Any warranty for the goods?
Q6:Normally 1 year warranty after delivery except artificial damage.
