Closed Cell XLPE/IXPE Foam Products

Product Description

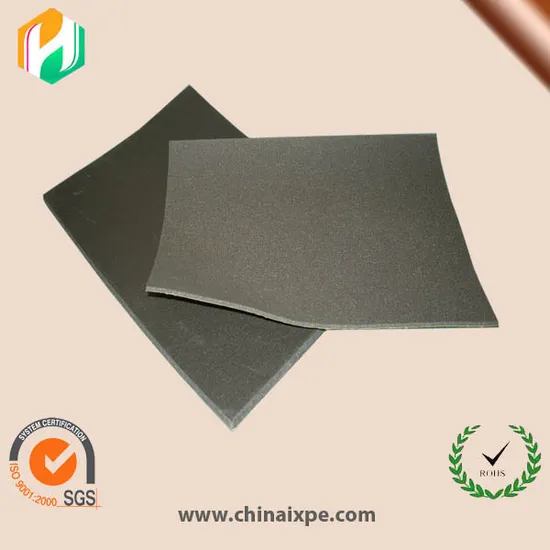

Closed cell IXPE foam
IXPE foam is physically cross-linked using an E-Beam (electronic beam) process that eliminates the need for harsh chemicals to achieve the advantages of crosslinking.
It is vertically foamed to create a balanced expansion and smooth surfaces on both sides, which are free of the irregular bubble surface common with chemically crosslinked foam. E-Beam crosslinking creates superior cellular structure combined with consistently uniform gauge and density. This leads to more predictable application performance. Our featured foams are able to be supplied in rolls, sheets, blocks or profile cut to meet your demands.
Featured advantages
• Non-toxic and odor-free
• Oil & grease resistant
• Mosisture proofing and shock absorption
• Suitability for thermo-forming and thermo-molding
IXPE foam specifications

Product name:	Physically crosslinked PE foam (IXPE)
Materials:	LDPE
Density:	28kg/m3 to 100kg/m3(2 lb to 12.5 lb)
Thickness:	From 0.5mm to 10mm
Width:	1000mm, 1200mm, 1500mm
Length:	Optional
Optional service:	Laminating, cutting and slitting
Supplied Form:	In rolls or sheets

IXPE foam physical properties

Property / Testing Standard	Unit	IXPE-010	IXPE-015	IXPE-020	IXPE-025	IXPE-030
Density / GBT6343	kg/m3	100±10	65±5	50±5	40±5	33±3
Tensile strength / GBT10808	MPa	1.3/0.9	0.8/0.6	0.65/0.5	0.5/0.35	0.35/0.25
Tear strength / GBT6344	N/cm	45/60	33/41	22/28	20/26	15/19
Thermal conductivity / GBT3399	W/m.K	0.052	0.050	0.048	0.047	0.046
Water absorption / GBT8810	mg/cm2	0.03	0.04	0.05	0.06	0.07
Working temperature	degree	From -80 to +120

Product display
Case Study
Packing and shipping
Why will you choose us?
• Outstanding technology and knowhow that answer customer production and quality requirements.
• Our advanced production facilities that enable us to meet changing market demands.
• And -above all - superior customer service.
• Our R&D department is constantly working to further improve HZD™'s products. We also work with customers around the world, both to develop innovative solutions for specialized requirements and to provide technical support.
