Ha-J/X Series Motor Stator/Rotor Paint Stationary/Rotary Drying Oven/Curing Oven

Product Description

Product Description

Application:
It is used for stationary/rotary curing of motor stators/rotors, and is widely used in the production of marine motors, high voltage motors, large AC/DC motors, special motors, etc.

Function:
It solves the problem of uneven painting of stators/rotors during static curing, which affects their electrical properties.
Safety: Surface low-load coil electric heating tubes, and the surface temperature is less than 350 ºC, eliminating combustion and explosion hazards; Large-air-volume forced ventilation, which keeps the dangerous gas concentration inside the oven always within a safe range; Exhaust pressure detection and alarm: heating will automatically stop when the exhaust is abnormal A large explosion relief door, which can minimize the loss in case of an accident; Interlocking control of the forced draft fan/circulating fan/heating power supply; High temperature combustible gas detection, control and alarm (optional). Energy saving: Highly-efficient energy-saving heat exchanger: recycling effluent heat; Thermal insulation material: high quality aluminum silicate wool; surface temperature ≤room temperature +15ºC Quality assurance: The temperature uniformity is increased to within ±5ºC, guaranteeing the quality of your products.
Control system: configuration software, computer centralized-distributed control, PLC touch screen control, paperless recording, insulation resistance testing, VOC dangerous gas detector, air pressure sensor, etc
Heating method: electricity, fuel, gas, steam

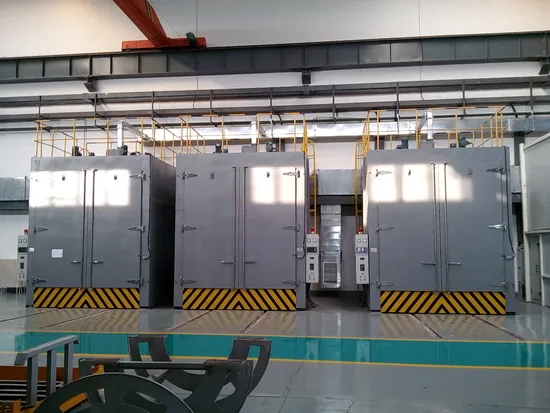

User-friendly design: Manual cart, traction trolley, electrical or hydraulic door; wireless remote operation; Detailed Photos

Product Parameters
Main technical parameters of HA-J/X Series Motor Stator/Rotor Paint Dipping Stationary/Rotary Drying/Curing Oven(examples)

Parameter	HA-1J/1X	HA-2J/2 X	HA-3J/3 X	HA-4J/4 X	HA-5J/5 X
Dimension of working chamber (width x depth x height)mm	1800×2600×1700	2000×3000×2000	2000×4000×2000	2500×5000×2500	5000×6000×3500
Operating temperature(ºC)	Room temperature--250	Room temperature --250	Room temperature --250	Room temperature --250	Room temperature -250
Operating voltage/frequency (V/ Hz)	3-380/50	3-380/50	3-380/50	3-380/50	3-380/50
Heating power (kw)	54	72	90	125	320
Temperature uniformity (%)	±2.5	±2.5	±2.5	±2.5	±2.5
Temperature fluctuation (ºC)	±1	±1	±1	±1	±1
Ventilation volume (M3/H)	700	1000	1500	3500	8000
Dissolvent discharge capability(L/H)	3.5	5.0	7.0	15	35
Heat transfer efficiency(%)	80	80	80	80	80
Trolley rotation	Roller/supporting wheel
Velocity of rotation	0.5~5rpm frequency control
Weight(T)	4.5	6.0	8.0	15	35
Note: 1.The product is non-standard, and can be customized, designed and manufactured in accordance with the requirement of the user; 2.The heat transfer efficiency only applies to the high security and energy-saving drying oven.

Company Profile
Founded in 2007, Ningbo Zhisheng Oven Co., Ltd is a large-scale enterprise specializing in the R&D and production and sales of non-standard automation equipment. The main products of the company include large ovens, curing ovens, tunnel furnaces, painting machines, ablation machines, non-standard automation assembly lines, industrial ovens, etc.
The company can produce various types of heating and curing equipment which can use electricity, steam, fuel oil, mixed fuel or other materials as heating media, and can design and manufacture equipment according to customers′ requirements.
The products are widely used in many industries including the electrical industry (such as motors, transformers, mutual inductors, and high-voltage switches); The friction & sealing material industry (such as brake pads, clutches); The fluoroplastics industry (such as sealing elements, PTFE composite sheets, PTFE products); The electronic & capacitor industry (such as electronics, household appliances); And the new material industry. The company has an annual output of more than 1, 200 units of equipment. Nowadays, more than 6, 000 units of equipment of the company are running in more than 4, 000 users in various industries across the country. The products have also been sold overseas to Europe, America, Southeast Asia and other regions.
The company takes "satisfying customers and serving society" as its mission, always adheres to the business philosophy of "sustainable development", strictly implements the ISO9001 quality management system, and constantly pursues innovation.
After years of exploration and experience, the company has accumulated rich experience in the industry and laid a good foundation for development. Now our company has strong strength of product research and development and high-quality staff, and enjoys the reputation of famous brand. Our company has obtained many national utility model patents. It is constantly providing the market with high-tech, sophisticated, top and new products.
Our customers
Certifications
Corporate Culture
Vision: To be a preferred supplier of medium and high-end industrial heating equipment worldwide
Mission: To provide customers with intelligent industrial heating equipment with uniformity of ±1ºC
Values: integrity, service, innovation, win-win results
FAQ
1) Are you a manufacturer or a trading company?
We are a manufacturer integrating design, manufacturing, sales, and import & export businesses

2) Can we attach our logo on the product?
Yes, we can add your logo to the product.
For more questions, please don't hesitate to contact us.
