Taijia TMeasurement pendulum skid resistance tester friction tester portable coefficient of friction tester

Product Description

Product Description

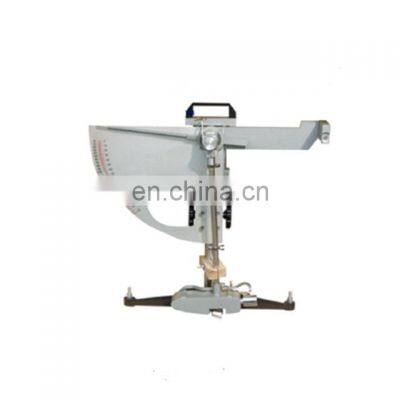

Product DescriptionBM-III Skid Resistance Tester.The Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface.This provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site. It is based on the Izod principle: a pendulum rotates about a spindle attached to a vertical pillar. At the end of the tubular arm a head of known mass is fitted with a rubber slider.The pendulum is released from a horizontal position so that it strikes the sample surface with a constant velocity. The distance travelled by the head after striking the sample is determined by the friction of the sample surface.A reading of Skid Resistance is obtained.Details ImagesItem nameSkid Resistance TesterStandardBS 812:114, EN 1097-8ModelBM-IIIPut the weight1500gPlace the center of gravity410mmRubber piece of pavement is static pressure22.2NThe end from the place of the rubber feet508mmOn the road surface sliding length126mmWeight47KgsPacking & DeliveryRelated productsHT-225 Concrete test hammer The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2001. HTH-225 concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so on.ZBL-R630A Rebar Locator (scanner edition)ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. CK-102 Crack width Detector CK-102 series of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement,metal surface crack width.Company ProfileDalian Taijia Technology Co.,Ltd.Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact Us1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:office at TEL:86-411-39685079Whatsapp:+86 15541112235web:/
