Product Description

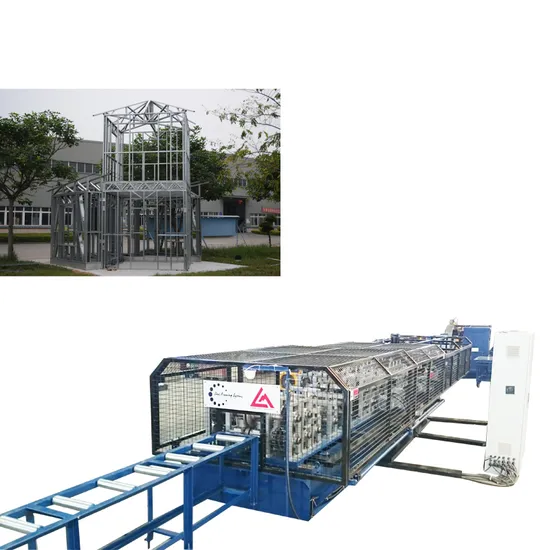

Prefabricated House Hydraulic Strip 300 MPA Light Gauge Steel Framing Truss Australia Lgs Machine
This machine is a fully complete line for framing system truss.Machine is designed with pre-punching/pre-cutting and automatic size changing and equipped with advanced Pro-CAD/Pro-CAM software by which Trussproducts are converted from to achieve an "end to end" seamless and error free aolution to Steel Framing.
Profile Parameters:
Size range from C75-300,normal size C75/C90/C140/C250
Thickness 0.5-2.0mm,450-550mpa
Maximum roll forming machine:30m/min
Drawing Profile:
Here are the models we have made for your reference. If you need more models, please contact us.
Producing Process Sketch
Product Parameters

Part details	Item Name	Specification
Material	Raw material	Galvanized steel
	Thickness	0.3-2.0mm
Machine	Roller station	16
	Shaft diameter	75mm
	Shaft material	Precision Machined
	Roller material hardness 30-40 HRC	Cr12
	Machine size	About 4.2*0.8*1 m
	Mahicne weight	About 5T
	Machine color	As customer' request
	Working speed	30-50 m/min
Cutter	Hardness	Heat treatment
	Cutting tolerance	± 1 mm
	Mterial	Cr12 Mov
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	30 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Simens,Cloosed Loop control
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capicatity	3 ton
	Price	Free as gift
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as gift

Our Advantages
Seamless end cut connection
Seamless end-cut connection is a patent design of LIMING LGS ROLL FORMER. The two ends of the vertical frame can seamlessly connect to the web of the bottom and top horizontal frames. So the weight of the house can be directly loaded and passed by the vertical frame, which makes the house safer.
Continuous web notch punching without extruding material
The strength of raw material will be greatly reduced when continuous web & lip notches are made, thus material in the pre-punching machine may be easily extruded and then cause machine jam during roll forming process.LIMING LGS MPA 300Machine with Pre-punching system,which we can do more continuous web notch even in 0.55mm thin thickness without extruding material.
LIMING MPA300 LGS Machine steel strip width is: 170-174mm width, 10mm less than the most other machines in the market. For a 200sqm house, the total frame is around 7000m,can save 439.6-659.4kg material

Material Thickness	0.8mm	1.0mm	1.2mm
Material Saved Per House	439.6kg	549.5kg	659.4kg

The length of each start-up waste of the LIMING pRE-punching & cutting machine is about 1M; most machines on the market are pre-punching & post-cutting (other supplier), their waste material is about 8m on each start-up

Start-Up/Change Steel Coil	8.11-12.13 Kg
5 Steel Coils/Day	40.55-60.65 Kg
Material Saved/Year	12.17-18.2 T

Main Accessories

1) Main Forming Machine

2) 5Tons Electric Uncoiler

3) Servo Motor System

4) IPC Computer Controlling System (Lenovo Laptop)

5) Production Software (1set)

6) Design Software-Vertex,forever using license

7) Hydraulic Automatic Punching Device (Web/Lip Notch,Swage,Service Hole,Chamfer,Dimple,Bolt Hole)

8) Hydraulic Pre-cutting Device

9) Automatic Printing Device

10) Run Out Table (4m)

11) Operation Manual

Detailed Photos





After-Sale Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Terms Of Trade
Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing. Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
