Farm Machinery Red Offset Disc Harrow
| US$5,000.00 | 3 Sets (MOQ) |
Basic Info.
Application Field
Agriculture
Farming Policy
Bed Planting Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Tractor
Arbor Configuration
No
Certification
CE, ISO9001
Color
Red
Warranty
1 Year
Matched Power
180-220 HP
Working Width
3500mm
Weight
2850kg
Transport
Tyre
Transport Package
as Order
Trademark
AS REQUEST
Origin
China
HS Code
84321000
Production Capacity
1000 Sets/Month
Product Description

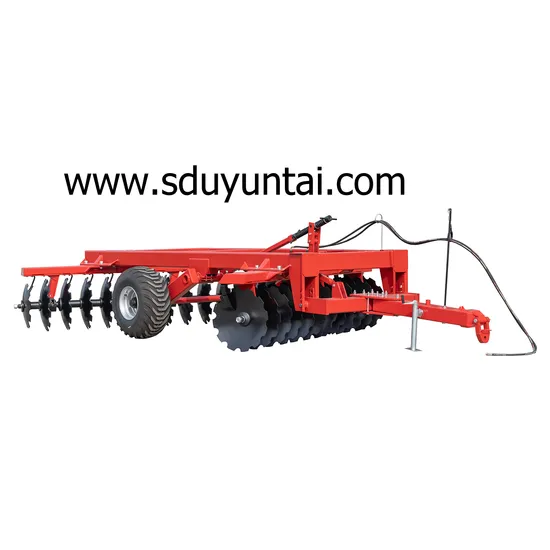

Product Description1BZY HYDRAULIC PRESSURE OFFSET HEAVY DISC HARROW
The traction type hydraulic offset heavy disc harrow is mainly suitable for smashing the stubble before ploughing, breaking the surface knot, cutting the straw into the field, breaking up the clods after ploughing, leveling and protecting the hoe, etc., and can also replace the plough on the mature land to carry out the soil ploughing operation. The work efficiency is high, the power utilization is reasonable, and the ability to break up the soil is strong. After the working, the surface is smooth and the soil is loose. It has strong adaptability to the filed with heavy soil, wasteland and weeds.
Photos
| Model | Number of disc | Size of disc | Working width (mm) | Working depth (mm) | Weight (kg) | Matched tractor (hp) | Note (Bearing Assembly) |
| 1BZY-1.8 | 16 | 610x6 | 1800 | 150-200 | 1420 | 70-85 | Grease or oil bath |
| 1BZY-2.0 | 18 | 660x6 | 2000 | 180-220 | 1580 | 85-100 | Grease or oil bath |
| 1BZY-2.2 | 20 | 660x6 | 2200 | 180-220 | 1660 | 100-120 | Grease or oil bath |
| 1BZY-2.5 | 24 | 660x6 | 2500 | 180-220 | 2100 | 125-150 | Grease or oil bath |
| 1BZY-3.0 | 28 | 660x6 | 3000 | 180-220 | 2300 | 150-180 | Grease or oil bath |
| 1BZY-3.5 | 32 | 660x6 | 3500 | 180-220 | 2850 | 150-180 | Grease or oil bath |
| 1BZY-4.0 | 36 | 660x6 | 4000 | 180-220 | 3100 | 180-200 | Grease or oil bath |
FOR MORE INFORMATION,PLEASE SEND EMAIL TO US.
