CNC Wood Router Machine Multihead for Furniture Legs Column Carving

Product Description

cnc wood router machine multihead for furniture legs column carving

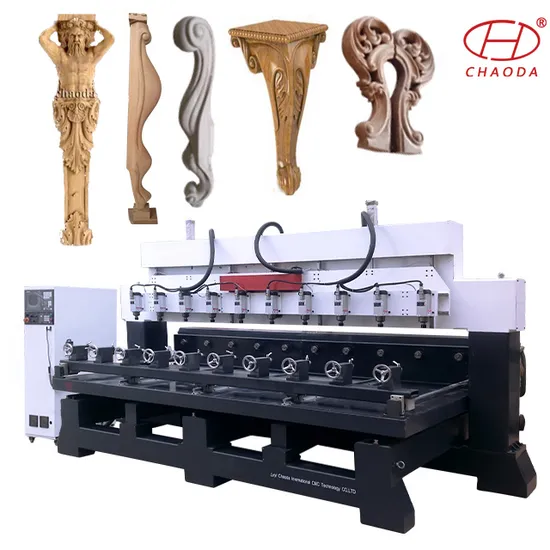

This item is very suitable for furniture bulk production, multi heads can work at the same time, also can work alone, many times increasing efficiency. Table movement, long time use no distortion, the more precise positioning accuracy. Each spindle can hold two tools, one tool for rough machining, one tool for finish machining ,which is equivalent to Auto Tool Changer. Simultaneous 5 axis Syntec control system, can make more complex 3d jobs. With a removable table, when you process plane material, just put the table on; when you process column /cylinder, just take off the table. Well compatibility in software: all kind of 3D carving softwares. We can make Multi heads machine with any working size according to customers' specific requirements.

Model No.	JCW1325R-4H 5AXIS
Machine structure	Heavy duty steel structure
Table	Removable; T-slot with clamps
Rotary working size	500mm diameter,1200mm length * 4 PCS
Flat working size	500mm width,1200mm length * 4 PCS
Spindle power	3.5kw double head air cooled spindle
Max moving speed	20m/min
Max working speed	15m/min
Resolution	0.001mm
Control system	5 axis Syntec
Motor	Japan YASKAWA Servo motor and driver
Inverter	Taiwan Delta
Max Burden weight	1500kg
Oil system	Automatic
Voltage	AC380V,3 phase,50Hz

This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair handrails, prop guns, wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
