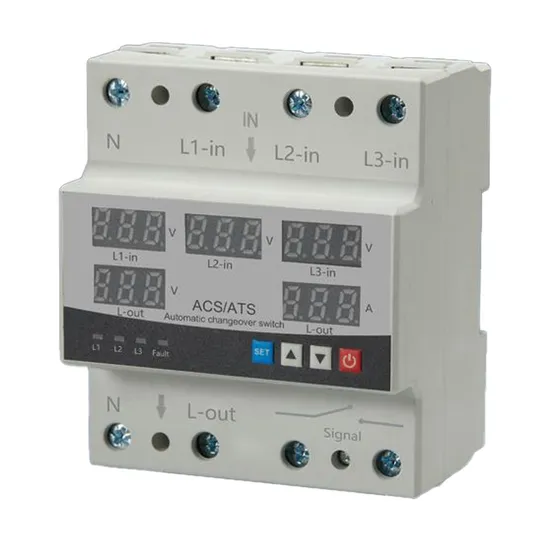

Voltage Protector N L1 L2 L3 AC230-300V 1-600s Acs/ATS Automatic Changeover Switch
| US$3.40-20.10 | 1 Piece (MOQ) |
Basic Info.
Frequency Characteristics
Low Frequency
Usage
SVC
Frequency
50/60Hz
Size
Small
Brand
Aoasis
Supply Terminals
N,L
Rated Supply Voltage
AC 220V;DC 85-300V
Rated Frequency
40/50/60/70Hz
>V Setting Range
AC130-300V:DC130-300V
<V Setting Range
AC80-210V;DC85-210V
Voltage Hysteresis
5V
Overvoltage Trip Delay
0.5s
Voltage Accuracy
<1%
Mvlax. Operating Phase Voltage
350V
Max. Operating Current
40A/63A
Altitude
≤2000m
Function
Lightning Protection
Ambient Temperature
-25c~+55c
Trademark
AOASIS
Origin
Zhejiang, China
HS Code
8536200000
Production Capacity
9999999piece/Pieces Per Month
Packaging & Delivery
Package Size
45.00cm * 23.00cm * 34.00cm
Package Gross Weight
20.000kg
Product Description
Product DescriptionFront-face Panel:
Technical Data
| Supply terminals | N,L1,L2,L3 |
| Rated supply voltage | AC 3*220V(N-L1/L2/L3) |
| Rated frequency | 40/50160/70Hz |
| Umax setting range | AC230-300V |
| Umin setting range | AC140-210V |
| Auto-reclosing delay(Ton) | 1-600s |
| Return delay to priority phase | 1-600s |
| Switch delay to reserve phases | <0.2s |
| Voltage hysteresis | 5v |
| Overvoltage trip delay | 0.1s;2350V:0.02s |
| Undervoltage trip delay | 0.1s;2350V:0.02s |
| Voltage accuracy | <1% |
| Max.operating phase voltage | 350v |
| Rated operating current | 63A/80A/100A |
| Max.operating current | 80A/90A/100A |
| Pollution degree | 3 |
| Electrical life | 10^5 |
| Mechanical life | 10^6 |
| Altitude | ≤2000m |
| Ambient temperature | -25ºC~+50ºC |
| Permissable relative humidity | ≤50% at 40 ºC (without condensation) |
| Storage temperature | -25ºC~+55ºC |
| Conductor size | 0.5mm2~1mm2 |
Setup Menu: Outline Overall and Installation Dimensions (mm): Product Catalog
FAQ
Q1. What's the payment term? A. We accept TT,30% deposit and 70% balance before shipping. Q2. How's the delivery time ? A. We depend on different products and different quantities. Generally, it takes about 3-15 days. If the quantity is very large, we need to negotiate. Q3. Tell me the standard of package? A. Normally are cartons, but also we can pack it according to your requirement. Q4.Could you offer Form A or C/O ? A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for thiscertificate. Q5.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.
