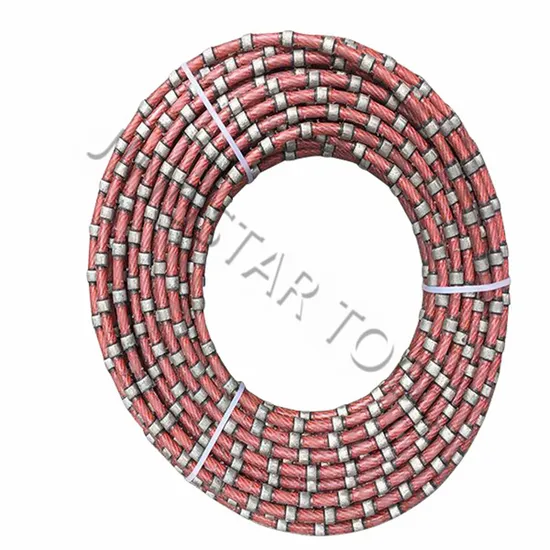

Diamond Wire for Quarrying/Block Squaring/Profiling Diamond Tools for The Eastern European and Central Asian Markets
| US$33.00-48.00 | 10 Meters (MOQ) |
Basic Info.
Model NO.
JINGSTAR
Tool
Quarry Wire Saw
Bead Diameter
11.5,11.0,8.8mm
Model Number
Wire Saw
Customized Support
OEM, ODM
Usage
Granite,Marble,Sandstone
Bead Type
Sintered Beads, Electroplated Beads Vacuum Brazed
Material
Diamond
Origin
Fujian, China
Production Capacity
5000
Product Description
Diamond Granite Marble Quarry Stone Cutting Multi Wire Saw For Sale PRODUCT FEATURES: 1: Good cutting result with small slot and high efficiency. 2: Good sharpness and long life,low noise and eco-friendly.| 8.5/8.8 | Plastic+spring | 37 | 20-30 | Granite Sandstone |
| 11 | Plastic | 40 | 20-30 | Granite Sandstone |
| 11.5 | Plastic | 40 | 20-30 | Granite Sandstone |
| 11.5 | Plastic+spring | 40 | 20-30 | Granite Sandstone |
| 8.5/8.8 | Plastic | 37 | 25-35 | Marble |
| 11 | Spring | 28 | 25-35 | Marble |
Granite Diamond Wire Performance:
| Application | Assembly | Stone hardness | Feeding speed | Output | Lifespan |
| Granite quarry Dia11.5mm | Sinter+Rubber | Soft Granite | 25-30m/s | 4-6m2/h | 15-25m2/m |
| Medium hard | 22-26m/s | 2-5m2/h | 8-15m2/m | ||
| Hard Granite | 18-23m/s | 1-2.5m2/h | 4-9m2/m | ||
| Granite Block dressing Dia11.0mm | Sinter+Plastic | Soft Granite | 25-28m/s | 60-100cm/h | 15-25m2/m |
| Medium hard | 22-25m/s | 40-60cm/h | 10-17m2/m | ||
| Hard Granite | 20-23m/s | 25-45cm/h | 8-12m2/m | ||
| Granite profiling wire Dia8.8mm | Soft Granite | 25-29m/s | 6-10m3/h | 17-22m3/m | |
| Plastic | Medium hard | 22-25m/s | 4-6m3/h | 12-17m3/m | |
| Hard Granite | 20-23m/s | 2.5-4.5m3/h | 10-14m3/m |
Diamond Granite Block dressing wire for Stationary wire saw machine
Diamond Granite Profiling wire for Stationary wire saw machine:
Diamond Marble Wire Performance:
| Application | Assembly | Stone hardness | Feeding speed | Output | Lifespan |
| Marble quarry Dia11.0mm | Sinter+Rubber | Soft Marble | 35-40m/s | 10-20m2/h | 40-70m2/m |
| Medium hard | 33-38m/s | 8-16m2/h | 25-45m2/m | ||
| Hard Marble | 30-35m/s | 5-8m2/h | 20-30m2/m | ||
| Sinter+Rubber | Soft Marble | 35-40m/s | 10-20m2/h | 35~55m3/m | |
| Medium hard | 33-38m/s | 8-16m2/h | 15~35m3/m | ||
| Hard Marble | 30-35m/s | 5-8m2/h | 10~25m3/m | ||
| Vacuum brazed +Spring | Soft Marble | 52-60m/s | 15-30m2/h | 33-58m2/m | |
| Medium hard | 50-57m/s | 15-24m2/h | 28-38m2/m | ||
| Hard Marble | 45-53m/s | 8-12m2/h | 17-25m2/m |
Diamond Marble quarry Wire Dia11.0mm Sinter+Spring
Marble block dressing Wire & profiling wire perofrmance:
| Application | Assembly | Stone hardness | Feeding speed | Output | Lifespan |
| Marble Block dressing Dia11.0mm | Sinter+Plastic | Soft Marble | 30-35m/s | 90-130cm/h | 40-60m2/m |
| Medium hard | 28-32m/s | 70-100cm/h | 25-40m2/m | ||
| Hard Marble | 26-30m/s | 60-80cm/h | 20-30m2/m | ||
| Marble profiling wire Dia8.8mm | Sinter+Plastic | Soft Marble | 30-35m/s | 100-150cm/h | 35-45m3/m |
| Medium hard | 28-32m/s | 80-120cm/h | 30-40m3/m | ||
| Hard Marble | 26-30m/s | 70-100cm/h | 25-30m3/m |
Sandstone Wire Performance:
| Application | Assembly | Feeding speed | Output | Lifespan |
| Sandstone quarry wire D11.5 | Sinter+Rubber | 30-36m/s | 4~10m2/h | 10-20m3/m |
| Sandstone Block dressing wire D11.0 | Sinter+Plastic | 24-28m/s | 60-100cm/h | 15-25m3/m |
| Sandstone Profiling wire D8.8 | Sinter+Plastic | 24-28m/s | 60-100cm/h | 15-25m3/m |
