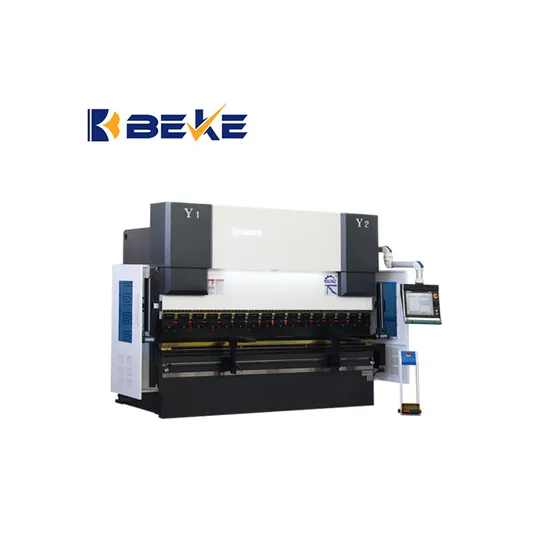

CNC Folding Machine 200ton 3200mm with Delem Da69t Sheet Metal Press Brake
Basic Info.
Model NO.
WE67K
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Model
We67K 200t3200
Control System
Da53t
Main Motor
Siemens
Servo Motor
Inovance
Hydraulic Valve
Bosch-Rexroth
Oil Pump
Sunny
Grating Ruler
Givi
Transport Package
Cover with Plastic Film
Specification
3900x1900x2700mm
Trademark
BEKE
Origin
China
HS Code
8462299000
Production Capacity
50 Set/Month
Product Description
Product DescriptionTechnical Data
| ITEM | VALUE |
| Model | WE67K 200T3200 8+1Axis |
| Pressure | 200ton |
| Max bending length | 3200mm |
| Max bending thickness for 3m sheet | 8mm |
| Column distance | 2600mm |
| Slide stroke | 200mm |
| Max opening height | 480mm |
| Throat depth | 400mm |
| Main motor power | 15kw |
| Machine size | 3900X1900X2700mm(LxWxH) |
| Weight | 12000kg |
| Axes | Y1 ,Y2, X1, X2, R1, R2, Z1, Z2 |
| WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity. Electro hydraulic servo system,full loop controlling the synchronization of the upper slider. Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision. Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide. Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions. | |
| DELEM DA69T CNC System Features: 17" high-resolution color TFT(touch screen control) 2D/3D graphical touch screen programming mode 3D visualisation in simulation and production Sensor bending & correction interface Exporting of computed flat patterns as DXF files(Profile-T-2D) Storage capacity 1 GB - 3D graphics acceleration Delem Modusys compatibility (module scalability & adaptivity) Automatic tool selection and machine tooling 3D Simulation with automatic best bend sequence identification with collision detection | |
