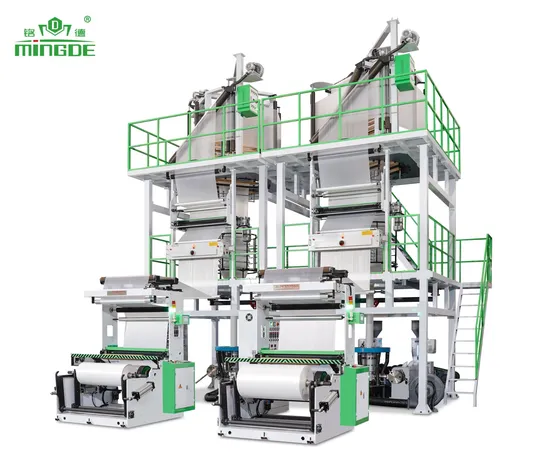

Low Energy Consumption High Speed HDPE LDPE Blown Extrusion Making Machinery Automatic Extruder Mutilayer Three Layers ABC Plastic PE Film Blowing Machine
| US$100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MD-ABA/V
Type
Three-Layer Co-extrusion Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
1500mm
Screw Diameter
55mm
Automation
Automatic
Computerized
Computerized
Machine Weight
4T
Certification
CE
Transport Package
Plastic
Trademark
mingde
Origin
Ruian Wenzhou China
HS Code
8477209000
Product Description
Product Description| Model | MD-ABA/V55 |
| Suitable Material | HDPE,LDPE,LLDPE |
| Max Film Width(mm) | 1000 |
| Film Thickness(mm) | 0.01-0.08 |
| Max Extrusion Output HD | HD: 140kg/hr |
| Extrusion unit | |
| Gear Box | 180×2 |
| Screw Diameter(mm) | φ55×2 |
| Screw L/D Ratio | 32:1 |
| Screw's Material | Bi-matical |
| Barrel's Material | 38crm |
| Barrel's Cooling Fan | 200W×3×2 |
| Thermo Control (zone) | 3×2 |
| Driving Motor (kw) | 22×2 |
| electric pressure meter | with |
| Extrusion Die | |
| Die Size (mm) | HD:φ120 |
| Screen Changer | fast screen changer |
| Thermo Control (zone) | 3 |
| Air Ring | double air ring |
| Cooling Blower (kw) | 5.5 |
| Center Steady Stick | 1 |
| Take-UP Unit | |
| Roller Width (mm) | φ165×1100 |
| Embossing Roller Width | no |
| Take-UP Motor (kw) | 1.1 |
| Take-UP Speed(M/min) | 10-80 |
| Height adjustable type | no |
| Winding Unit | |
| Type OF Winder | single full automatic winder |
| EPC | with |
| Roller Width (mm) | 1100 |
| Winding Motor (N.M) | 1.5KW |
| Winding Speed(M/min) | 10-80 |
| Voltage | 380V,3P,50HZ |
| Cover Dimensions (m) | 7×3.5×6.7 |
