OEM High Quality Suspension Type Glass Insulator for Pole Line Factory Price

Product Description

Basic Info.

Model NO.	U70B/U100B/U120B/U160B/U210B/U240B	Type	Link Fittings
Surface Treatment	Light Green	Port of Shipment	Tianjin or Qingdao
Transaction Price	Fob/CIF/Ewx	Material	Glass
Certification	ISO:9001-2015	Transport Package	Wooden Box
Specification	U70B/U100B/U120B/U160B/U210B/U240B	Trademark	Hebei Sali
Origin	China	HS Code	8546100000
Production Capacity	500000 Pieces/Per Month

Product Description

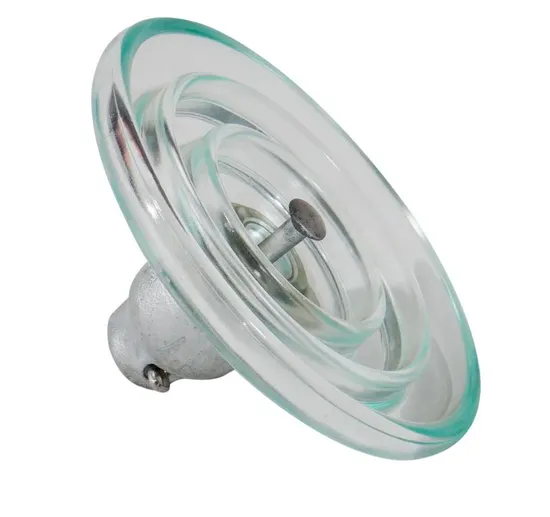

Product Description The glass insulators usually are manufactured at high temperatures by mixing the different materials, including lime and quartz powder, and then it suddenly cools in the mold. This action ("Toughening" causes tightening of the glass). In this way, a glass insulator is obtained.
Advantages and Disadvantages of Glass Insulators
Advantages:
1. The glass insulators have higher resistant to breaking as compared to the ceramics and its mechanical compressive strength is 1.5 times higher than ceramics.
2. The electrical resistance is much higher than that of ceramic insulators (between 500 kV/cm and 1000 kV/cm).
3. Thermal expansion coefficient of glass insulators is small, and its relative deformation is very low due to temperature variation. Also, glass insulators before cracking are completely crushed, so it is easy to detect faulty insulators on the floor. Contrary to ceramic insulators, any crack or hole created during manufacturing process is detectable in the glass insulators.
4. Due to transparency, some or sun rays pass from the glass insulator, thereby decreasing the degradation of insulator.
Disadvantages :
1. The mechanical durability of glass insulators against bending forces is slightly less than that of ceramics.
2. By a strong impact all insulator will break.
3. Any impurity in composition or any temperature variations of environment during storing or operation leads to breaking the insulator.
4. The glass insulators absorb contaminations easier than other types of insulators.
5. The moisture easily distilled on the surface of the glass insulators.

IEC Designation	Diameter	High	Creepage Distance	Mechanical failure load	Power frequency wet withstand voltage	Lightning impulse withstand voltage	Impulse puncture voltage	Power frequency breakdown voltage	Unit weight
U40B	175	110	190	40	25	50	2.8	90	2.1
U70B	255	146	320	70	40	105	2.8	130	3.6
U100B	255	146	320	100	40	105	2.8	130	3.8
U120B	255	146	320	120	40	105	2.8	130	4
U160B	280	155	400	160	80	110	2.8	130	6.5
U210B	280	170	450	210	105	125	2.8	130	7.2

Detailed Photos

Certifications
Packaging & Shipping Packing method: carton, wooden case, pallet
Mode of transportation: sea transportation
Company Profile Hebei Sali Electric Equipment Manufacturing Co., Ltd. is located in Yongnian District, Handan City, Hebei Province. It is a modern enterprise that integrates research and development, production, and sales. Hebei Sali, as a production and sales enterprise of pole line hardwares, provides different standards of products such as British, American, German, and Japanese standards for the global market. Hebei Sali makes power supply simple and efficient, establishing a strong and flexible global power grid connection for everything you need,lighting up people's lives!
Our Advantages 1.To provide our customers with high-quality products and high-quality after-sales service.
2. Focus on new technologies to meet the needs of all experiments.
3. Keep good relationship with our customers.
4. Power products are diversified, and customized services are supported
5. Provide a good working atmosphere for our employees.
FAQ 1. Are you a factory?
We are a professional factory of manufacturing.
2.How about the payment terms?
Normally 30% deposit in advance, the balance should paid before shipment.
3.How about delivery time?
Depend on your order quantity, we can finish order very fast.
4.Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5.What's the price?
Different items different market will be different cost, we will keep giving best and competitive price for each customer.
6.Can you make it according to my drawing?
Of course, we can make various products according to your demands.
