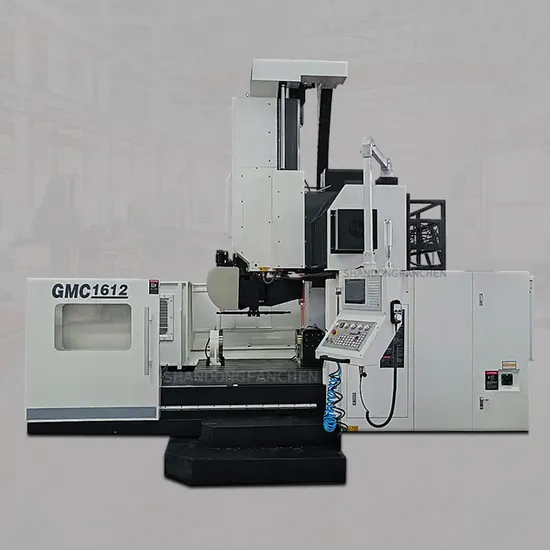

Gmb1612 1611 1211 High Speed Five Axis CNC Gantry Machining Center
| US$62,900.00-122,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GMB1612
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Dragon Gate Machining Center
Certification
GS, CE, ISO 9001
Condition
New
Bed Dimension
1600/800mm
Workbench Bearing
1500kg
Ttype Slot Size
5/18/140mm
Gantry Width
1100mm
Xaxis
1600mm
Yline
1100mm
Zaxis
600mm
Repeat Fixed Position Accuracy
0.008mm
Range of Speeds
8000rpm
Electrical Machinery
15/18.5kw
Bore-Hole
Bt50
Cut Into Give Speed
10000mm/Min
Number of Tools
24t
Machine Tool Shape Size
4100/2600/3400mm
Weight
12000kg
Transport Package
Xyloid
Specification
4100/2600/3400mm
Trademark
FANCHEN
Origin
China
Production Capacity
100
Packaging & Delivery
Package Size
410.00cm * 260.00cm * 340.00cm
Package Gross Weight
12000.000kg
Product Description
| Product model | Unit | GMB1814 | GMB1611 | GMB1313 | ||
| Workbench | Bed dimension | mm | 1200 /1800 | 1600/800 | 1300/1200 | |
| Workbench bearing | kg | 3000 | 1500 | 1500 | ||
| Size of T-shaped groove on workbench | mm | 22/180/7 | 5×18×140 | 22/180/5 | ||
| Gantry width | mm | 1400 | 1100 | 1300 | ||
| Triaxial | Triaxial travel | X-axis | mm | 1800 | 1600 | 1300 |
| Y-axis | mm | 1400 | 1100 | 1300 | ||
| Z-axis | mm | 700 | 600 | 700 | ||
| Distance from spindle end surface to working surface | mm | 350-1050 | 140-740 | 130-830 | ||
Fixed position accuracy | Operative norm JB/T8772.4 -1998 | X-axis | mm | 0.015 | 0.015 | 0.015 |
| Y-axis | mm | 0.015 | 0.015 | 0.015 | ||
| Z-axis | mm | 0.01 | 0.01 | 0.01 | ||
Repeat fixed position accuracy | Operative norm JB/T8772.4 -1998 | Xaxis | mm | 0.008 | 0.008 | 0.008 |
| Yline | mm | 0.008 | 0.008 | 0.008 | ||
| Zaxis | mm | 0.008 | 0.008 | 0.008 | ||
| Principal axis | Range of speeds | Rpm | 8000 | 8000 | 8000 | |
| Electrical machinery | Kw | 15/18.5 | 15/18.5 | 11/15 | ||
| Bore-hole | BT50 | BT50 | BT40 | |||
| Spindle form | Direct connection type | Direct connection type | Direct connection type | |||
| Fast feed speed | Cut into give speed | mm/min | 10000 | 10000 | 10000 | |
| Quick travel | m/min | 20 | 20 | 20 | ||
| Feed motor torque X/Y/Z | N.M | 30/25/35 | 30/25/35 | 30/25/35 | ||
| Tool magazine | Volume | or so | 24 | 24 | 24 | |
| Knife library form | Knife arm type | Knife arm type | Knife arm type | |||
| Change the knife time | S | 2 | 2 | 2 | ||
| Use the pressure | MPA | 0.6 | 0.6 | 0.6 | ||
| Voltage frequency | V/Hz | 380/50 | 380/50 | 380/50 | ||
| Machine tool shape size | mm | 4850/3600/3400 | 4100/2600/3400 | 3300/2400/3200 | ||
| Weight | kg | 15000 | 12000 | 8100 | ||
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
