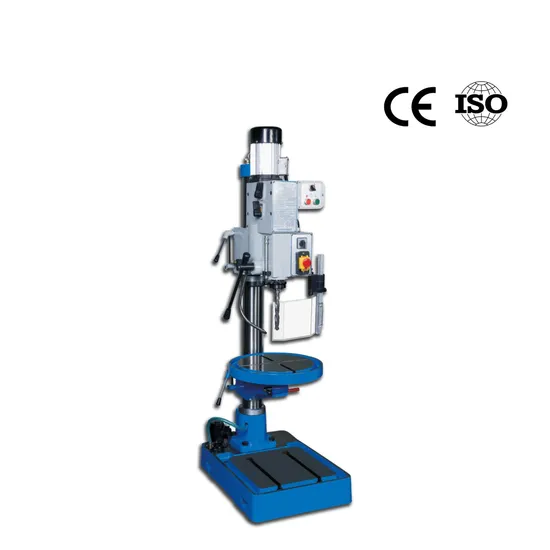

Senmo Pillar Type Vertical Drilling Machine Z5025
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
Z5025
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Spindle Travel
150mm
Max. Drilling Diameter
25mm
Spindle Speed Range
100-2900r/Min
Spindle Speed Steps
8
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Feature |
| Change speed with gears and operate easily. High spindle speed and wide speed range. Characteristic auto tool releasing device guarantees that it is very easy to change tools. Equipped with coolant system and work lamp. Ideal choice for single piece, small batch and mass. Production for drilling, counterboring, reaming, tapping, spot facing, etc. |
| Specifications | Z5025B | Z5025 |
| Max. drilling diameter | 25mm | 25mm |
| Column diameter | 100mm | 100mm |
| Spindle travel | 150mm | 150mm |
| Distance from spindle center to column center | 225mm | 225mm |
| Max. distance from spindle nose to table | / | 630mm |
| Max. distance from spindle nose to base | 550mm | 1070mm |
| Spindle taper | MT3 | MT3 |
| Spindle speed range | 100-2900r/min | 100-2900r/min |
| Spindle speed steps | 8 | 8 |
| Table diameter | / | 440mm |
| Table travel | / | 385mm |
| Base size | 600x450mm | 690x500mm |
| Overall height | 1390mm | 1900mm |
| Main motor | 1.1/0.75kW | 1.1/0.75kW |
| Coolant motor | 40W | 40W |
| N.W./G.W. | 225/235kg | 290/300kg |
| Packing size | 71x54x117cm | 80x61x190cm |
| Standard Accessories | Optional Accessories |
| Drill chuck | Angle vice |
| Arbor | Safety guard |
| Taper sleeve | |
| Drift | |
| Wrench |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
