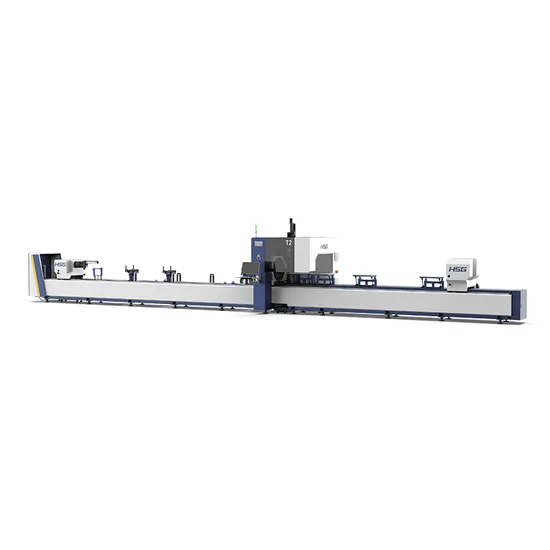

3kw T2 Series Hsg Three -Chuck Metal Tube Laser Cutting Machine Price

Product Description

Product Description
Technical Parameters

Power	3000-6000w
Rotating Speed of Chucks	100r/min
No-load Speed	100m/min
X/Y-axis Positioning Accuracy	±0.03mm/m
X/Y-axis repositioning accuracy	±0.03mm
*Tailing Length	0
Acceleration	1G
Cutting Capacity	Round tubeΦ20 - Φ240mm Square tube20*20 - 240*240 Rectangular diagonal≤240mm
Weight of Single Tube	300kg
Overall Dimensions(L*W*H)	17000mm*3200mm*3000mm

*There are other power options available, please contact us for specific prices.
Our Advantages
Independent Servo Follow-up Support
Both loading and unloading positions are equipped with highly sensitive and independent servo follow-up support to ensure stable tube cutting and enhance cutting precision.
Fully Portable Three Chucks
Fully portable three chucks structure for easy short-tailing cutting .
The chucks are designed as two chucks are front and one chuck is rear to achieve more load.
C3 chuck is the hollow chuck leading to blanking of complete tube.
Standard equipped with 240mm rectangular-circle chucks and the clamping ability of rectangular tube is improved.
Intelligent Bus Operating System
Various auxiliary functions of tube laser cutting machines to satisfy multiple processing demand.
T2 series is equipped with professional nesting software to achieve efficient management of production progress and price calculations.
Professional Nesting
The machine is equipped with professional and customized nesting software. The intelligent nesting assists to monitor the production schedule and quotation accounting.
Automatic Loading (Optional)
Optical multi-functional loading support con-struction, which can satisfy automatic loading of round tubes, rectangular tubes, section steel and other tubes, improves loading speed and achieve efficient loading.
Tube Splicing Technology
The operating control offers 50+ kinds of tube splicing patterns, for convenience of subsequent welding, such as splicing of male and female head of square tube, 90° arc splicing, splicing of round tube tee, splicing of cut-through holes, 45° splicing of hexagon , splicing of angle iron and channel steel, etc.

Cutting Samples
After-sale Service
Packing & Delivery
To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.

Company Profile
R&D CAPACITY
By the end of Dec. 2022, HSG Laser had applied for 380+ authorized patents, 90+ software copyrights and 80+ registered trademarks at home and abroad.
ISO Quality Management System Certification
EU CE Certification
EU RoHS Certification
American FDA Certification
Others
FAQ
Before-Service 1.How can I get more information about the equipment?
For more information, you can find and download our product catalog in Source Center. If you want to get equipment information indetail, please telephone our hotline and we will provide a professional product specialist to answer yourquestion.
2.Can I apply proofing and How can I apply it?
Definitely. We provide a free proofing service for you. For free proofing, there are 3 ways to contact us:




After-Service
1.If I purchase your equipment, can you provide technical training ?
Yes. In HSG, we provide reassuring service for you. After you purchase our products, we will offer free operation and technical training for you to ensure your subsequent use.

2.How can I purchase the accessories of equipment?
You can purchase the accessories of equipment in two ways:



3.Where can I attain the maintenance book on the official website?
Answer: You can find the maintenance book on Source Center page and you can choose to read online or download the file directly.
