1L 2L 3L 5L Plastic Jars Jerry Cans Jugs Laundry Detergent Toilet Cleaner Bottles Hand Sanitizer Disinfectant Bottle Blow Molding Machine

Product Description

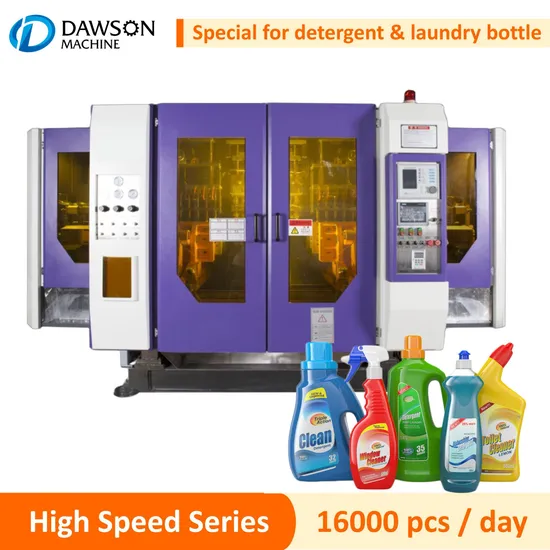

High speed Extrusion Blow Molding Machin

suitable for making plastic bottle, blowing jars, blow molding small containers, jerrycans from 5L to 20L,
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.0

Technical Parameters

	Unit	FB-85-25H+S2X2.10BM
Maximum volume	L	3.8L
Screw diameter	MM	85/25
Screw length diameter ratio	/	1:24
Screw speed RPM	RPM	20-60
Clamping force	KN	110
Opening and closing stroke	MM	580-230
Swing travel	MM	650
Maximum plasticizing force	KG/H	130/5
Effective size of template (height x width)	MM	490x400
Number of heating sections of die head	/	5
Extrusion motor power	KW	30/2.2
Servo hydraulic pump motor power	KW	15(use servo hydraulic to save 30-40% power)
Barrel heating power	KW	11/1
Heating power of die head	KW	5.5
Die head servo motor power	KW	5.5
Hot cutter power	KW	2
Total power of equipment	KW	72.2
Actual power used	KW	28-33
Machine weight	TON	11
Input voltage	V	380V, 50 HZ ±10%
Control voltage	V	DC24V
Equipment size	MM	4497x4139x2655

Details Images
Symmetric Toggle Clamping Structure


Deceleration Valve for Carriage Movement


All Switches & Breaker use France

/
Servo Pump for Hydraulic System


Germany Siemens Controlling System


Digital 100 points
Servo Controller






Solid State Relay use TAIWAN FOTEK


Professional Workshop & Servie Engineer Team
High Quality Blow Molding Mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Customer Photos We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...

FAQ

Q: Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
