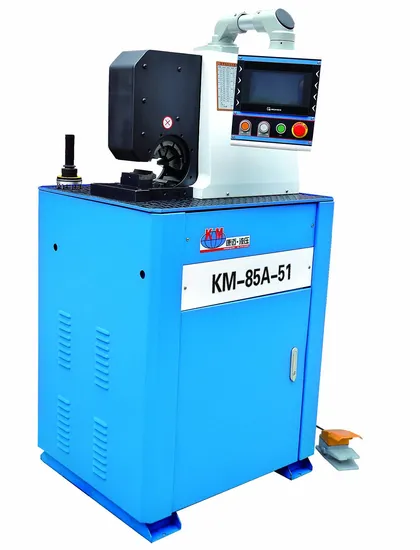

Ce Qualified Side Feeding 2"Hose Crimping Machine Km-85A-51

Product Description

Technical Datas Of Side Opening Hydraulic Hose Crimping Machine KM-85A-51

Model NO.	KM-85A-51
Crimper Rage	1/8 inch -2 inch IV
Standard voltage&motor	380V/5.5kW
Crimping Force	420 T
Side Open	80mm
Opening	above 30mm
Open Time	within 5S
Close Time	within 12S
Hydraulic Oil	Winter: YB-N32; Summer: YB-N46
No.of standard die sets	10 sets
Systematic Pressure	25Mpa
Machine size	810*665*1600 (mm)
Weight without oil	1110KG
Shelf	has
Quick Change Tool	has

Advantages Of KM-85A-51 Hydraulic Hose Crimping Machine
1. Tool change wizard and tool change alarm2. Data storage for crimping parameters and die sets3. Counters4. Diameter crimping;diameter,retraction,correction, delay5. Manual/automatic mode/foot pedal6. User-friendly navigation7. Die position displayed8. Can crimp both by pressure and diameter 9. Ideal when parts with large tolerance or sensitive materials need to be crimped.10. Multi-step crimping
Applications Of KM-85A-51 Hydraulic HoseCrimping Machine 1.Best choice for crimping hydraulic hose with double flange fitting.
2. Suitable for high precision pressing of low and high pressure hose diameter ,starting from 1/4" to 2" internal hose pipe.
3.Used rubber hose to transmit hydraulic pressure as there working power.
4.Used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry.
Hydraulic Hose Crimping Machine why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimp high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging not cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.
