High Quality Full Servo Sanitary Napkin Machine

High Quality Full Servo Sanitary Napkin Machine

US$700,000.00-2,500,000.00 1 set (MOQ)

Basic Info.

Model NO.
CSG-SN1500EP
Real Running speed
>800PCS/min
Automatic Grade
Automatic
Certification
CE, RoHS, ISO, CCC, SAA, C-tick, NOM, PSE, GOST, EMC, E-Mark, UL
Condition
New
After-sales Service
After Sales Services&Training
Pass Percentage
97%-100%
Color
Customized According to Requirements
Product Structure1
Fast-Easy Packing Sanitary Napkin
Product Structure2
Straight Packing Sanitary Napkin
Product Structure3
Individual Packing Sanitary Napkin
Power
180-330kw
Transport Package
Wooden Crates/Cases
Specification
26m*3.5m*3m
Trademark
YUHONG
Origin
China
HS Code
8441909000
Production Capacity
25 Sets/Year

Product Description

Full Servo Sanitary Napkin Machine Product Description

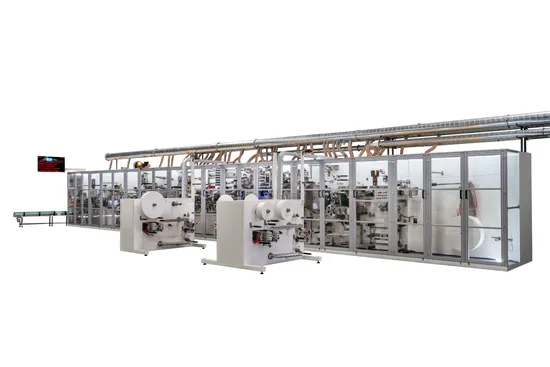

CSG-SN1500EP Full Servo Sanitary Napkin Machine
Product Stucture
1 Fast-easy packing sanitary napkin
2 Straight packing sanitary napkin
3 Individual packing sanitary napkin
Main Technical Parameters
1 Supply: 3 phase,380V,50Hz
2 Power:180-330KW(Excluding hot melt applicator and Compressor)
3 Production speed:600-1200pcs/min
4 Qualification:≥97%
5 Outside dimension(m):32 x 8.5 x 3 (L×W×H)( for reference)
Main Function and Features
(I)Mechanical part
1 Pulp SAP mixing product and laminating core product are compatible
2 High-density ultra-thin fluff core forming system,good absorbability
3 Core punching on-line and top sheet printing rule position function
4 With web guiding system
5 Machine with count function and directly connect with packing machine (option)
6 Packing machine(option)
7 Dust collection filter system (option)
8 Straight packing with fixtape separating function(option)
(II)Electric part
1 Full servo motor drive and PLC control
2 One button for size change, quick and less waste
3 High-precision tension control system,active un-winding and auto-splicing system
4 i-MAS Intelligent equipment mangement and analysis system
5 Material auto-splicing end joint limit at 3m, and decrease material wastage
6 Material automatic inspect,broken and lost alarm system
7 Material picture ruled position application
8 Vision inspection system (option)
9 Elastic BTSR tension control system, single tension adjust(option)
Detailed Photos
Sales Service
Company Profile
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO.,LTD
With nearly 30 years design and manufacturing of disposable hygiene machine( Sanitary napkin machine , Under pad machine , Adult & Baby diaper machine) , more than 30 sets production line per year, and provided thousands of machines to our customers around the world. Especial enjoyed the good reputation in China, South-east Asia, middle-east, and Europe.
