Pneumatic Vacuum Conveyor for Granules/Powder Bulk Material Handling
| US$1,500.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RXXL-14/33/56
Structure
Conveyor System
Material
Stainless Steel
Material Feature
Oil Resistant, Fire Resistant
Application
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition
New
Volume
50L/100L/150L/200L/300L
Delivery Time
10-25days
Usage
Powder, Granular, Pellet Bulk Material Conveying
Work Efficiency
Customized According Customer Request
Filter
4.5μm
Transport Package
Wooden Box
Specification
per model
Trademark
RONGXIN
Origin
China
Production Capacity
50000/Year
Product Description
BUlk POWDER HANDLING VACUUM CONVEYORalso known as suction pneumatic conveying, vacuum feeder ,Pneumatic vacuum feeder ,relies on the air flow generated by a pressure lower than the external atmospheric pressure (the standard atmospheric pressure is equal to 101.325KPa) to transport materials along the flow path inside the pipeline.
This suction machine is made of 304/316L material with an inner surface of 0.6 μ Mirror treatment. The standard model is intermittent conveying, and the numbers in the specifications represent the suction volume each time. After each suction reaches the rated volume, open the bottom flap valve, discharge the material, close the valve, and start the suction cycle again.
Product Parameters
RX Light Vacuum Suction Machine

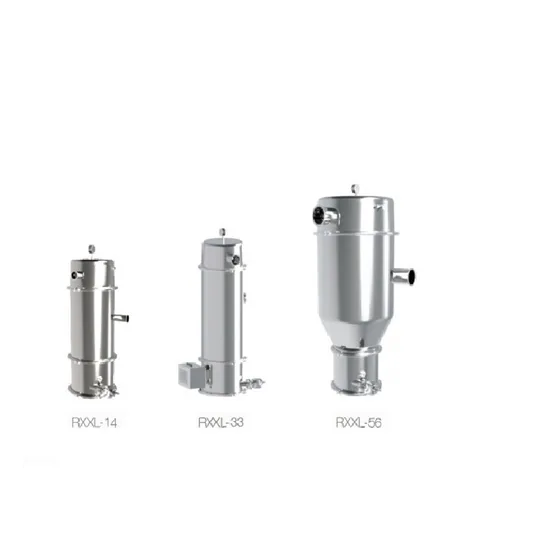

RX vacuum suction machines are divided into six standard types: RXXL-14, RXXL-33, and RXXL-56. Different models of suction machines are selected based on different conveying distances, conveying volumes, and material densities, and detailed selection is made according to the table.
| Model Parameters | RXXL-14 | RXXL-33 | RXXL-56 |
| Volume(L) | 14 | 33 | 56 |
| Power(W) | 200 | 200 | 200 |
| compressed air consumption/pressure (L/Min)/Mpa | 100/0.6 | 100/0.6 | 100/0.6 |
| Vacuum pumping interface | Quick installation 2inch | Quick installation 3inch | Quick installation 4inch |
| Inlet interface | Quick installation 2inch | Quick installation 3inch | Quick installation 4inch |
| Capacity t/h | 2.5-5.5 | 4-7 | 6-8 |
| Weight(kg) | 37 | 40 | 65 |
| Overall Dimension(mm) D*H | Φ400*1000 | Φ400*1250 | Φ650*1350 |
Main Structures Filter Elements
| Multiple filter cartridge forms | ||
| Polyester fiber coated filter element | 0.5/0.2μm | Large filtration area, maximum temperature of 80 ° C |
| PE rod coated filter element | 0.5/0.2μm | Suitable for sticky powder, maximum temperature of 60 ° C |
| Stainless steel folding mesh filter element | 5μm | Hygiene, large filtration area, maximum temperature of 130 ° C |
| Stainless steel sintered mesh filter element | 5μm | Qualified GMP, maximum temperature of 200°C |
| Filter bag filter element | 5μm | Anti static, hygienic, temperature 150 ° C |
