Surface Grinding Machine (SGA30100AH SGA30100AHR SGA30100AHD)
| US$10,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SGA30100AH SGA30100AHR SGA30100AHD
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
surface grinding machine
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
305X1020mm
LONGITUDINAL TRAVEL
1130mm
CROSS TRAVEL
340mm
AUTO FEED
0.1-8mm
WHEEL SIZE
350X40X127mm
Transport Package
Plywood Case
Specification
3300kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description

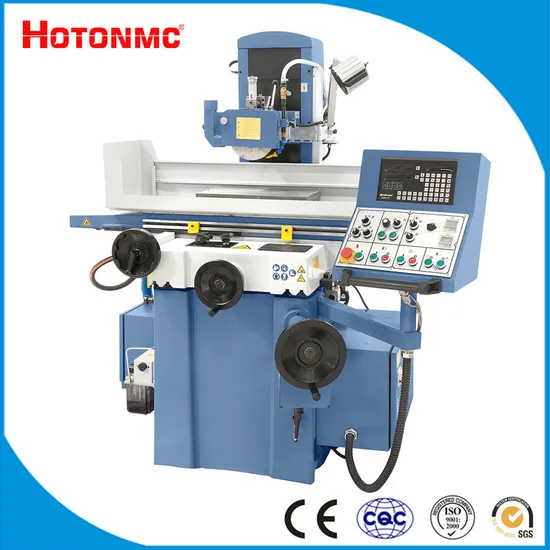

SURFACE GRINDER GRINDERSThe surface grinding machine with pleasing appearance and well designed structure, the machine is an indeed precision grind
equipment for metal working. The well designed structure have good rigidity and keep the machine with high accuracy.Well designed
and carefully assembled Hydraulic unit make the table moves smoothly. The oil temperature increase low after long working.
SPECIFICATIONS:
| MODEL | SG2050AH SG2050AHR SG2050AHD | SGA2550AH SGA2550AHR SGA2550AHD | SGA3063AH SGA3063AHR SGA3063AHD | SG30100AH SG30100AHR SG30100AHD | SG4080AH SG4080AHR SG4080AHD | SG40100AH SG40100AHR SG40100AHD | |
| TABLE SIZE | 200*460 | 254*508 | 305*635 | 305*1020 | 406*813 | 406*1020 | |
| LONGITUDINAL TRAVEL | 510mm | 640mm | 765mm | 1130mm | 910mm | 1130mm | |
| CROSS TRAVEL | 238mm | 300mm | 340mm | 340mm | 450mm | 450mm | |
| MAX DISTANCE FROM SPINDLE CENTER TO TABLE | 450mm | 580mm | 580mm | 580mm | 580mm | 580mm | |
| SPEED OF TABLE LONGITUDINAL MOVING | 5-25m/min | 7-25 m/min | |||||
| TABLE CROSS MOVING | AUTO FEED | 0.1-8mm | |||||
| RAPID SPEED | 990mm/min | ||||||
| FEED OF HANDLE | 0.02mm/div. | ||||||
| WHEEL HEAD VERTICAL MOVING | AUTO FEED | (AHD) 0.005/0.01/0.02/0.03/0.04/0.05mm/stroke | |||||
| RAPID SPEED | (AHD/AHR) 460mm/min | ||||||
| FEED OF HANDLE | 0.01mm/div.(AH) 0.005mm/div(AHR/AHD) | ||||||
| GRINDING WHEEL SIZE | 200*20*31.75 | 350*40*127 | 50HZ: 400*40*127; 60HZ: 350*40*127 | ||||
| MAIN MOTOR | 1.5KW | 5KW | 7.5KW | ||||
| PACKING SIZE cm | 190*170*215 | 217*212*213 | 235*222*213 | 295*222*215 | 285* 227*215 | 295* 227*218 | |
| GROSS WEIGHT KG | 1800 | 2400 | 2800 | 3500 | 3800 | 4300 | |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
