Brand Good Quality Seated Type 1500kg Capacity 3-Way Electric Pallet Stacker for Narrow Aisle Mca Series

Product Description

Product Description

Features: 1) Electronic power steering system, light and low noise
2) Drive unit floating bodies wigh patent design
3) AC driving system, no carbon brush, maintenance free
4)USA CURTIS controller, German REMA handler, imported waterproof electrical components
5)Electromagnetic braking system
6)Stepless speed control system
7)Controller with multiple automatic protection
8)Integrated hydraulic and power control system, easily operation, reliable performance
9)Emergency reversing device/ emergency brake switch
10)Brake effect when handler at highest and lowest position.
11)More safety with double limit switch when lift
12)Small turning radius, reliable work with lower load center
13)Mast tilt function, Hydraulic system self-rock function

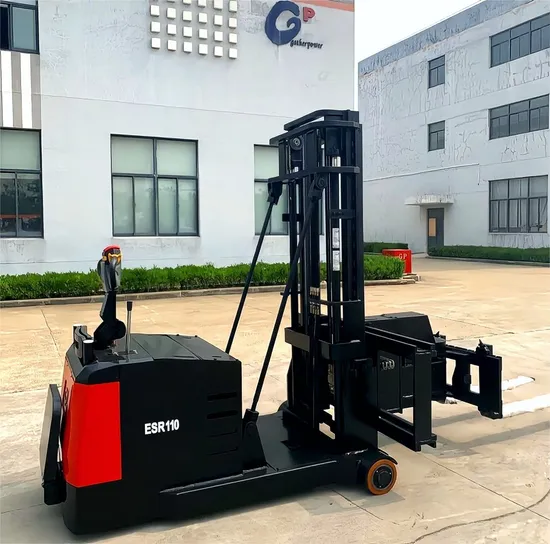

ESR110-112 Electric Three-way Stacker
Specification
Characteris-tics	Model		ESR110	ESR112
			4000	4000
	Power		Battery	Battery
	Operation		stand	stand
	Load Capacity	Q(Kg)	1000	1200
	Load Centre	C(mm)	500	500
	Wheelbase	y(mm)	1500	1500
Weight	Service Weight	Kg	1980	2040
Wheel	Tyre		PU Wheel	PU Wheel
	Tyre size,front	ÆxW (mm)	Ø210*75	Ø210*75
	Tyre size,rear	ÆxW (mm)	Ø230*85	Ø230*85
		ÆxW (mm)	Ø130*55	Ø130*55
	Wheel,front/rear		1X+2/2	1X+2/2
	Track width,front	b10(mm)	1172	1172
	Track width,rear	b11(mm)	631	631
Dimensions	Height of mast lowered	h1(mm)	3425	3425
	Free lift	h2(mm)	-	-
	Lift height	h3(mm)	9000	9000
	Height of mast,extend	h4(mm)	9730	9730
	Mast lowered fork height	h13(mm)	35	35
	Length to fork face	l1(mm)	3000	3000
	Overall length	l2(mm)	1963	1963
	Overall width	b1(mm)	1269	1269
	Fork dimension(thickness/length/width)	s/e/l(mm)	950/100/35	950/100/35
	Fork spread	b5(mm)	760	760
	Min.ground clearance	m2(mm)	53	53
	Aisle width	Ast(mm)	1525	1525
	Turning radius	Wa(mm)	1800	1800
Performance	Travel speed with/without load	km/h	5.5/6	5.5/6
	Lifting speed with/without load	m/s	0.25/0.33	0.25/0.33
	Lowering speed with/without load	m/s	-	-
	Climbing ability with/without load	%	5/7	5/7
	Service brake		Electromagnetic	Electromagnetic
Motor	Drive motor	kw	1.5	1.5
	Lift motor	kw	3	3
	Battery voltage/rated capacity	V/Ah	24/280	24/320
	Energy consumption by VDI cycle	kWh/h	2.83	2.83
Others	Drive control mode		AC- speed control	AC- speed control
	EN12053/Noise level at operator's ear	dB(A)	69	69
