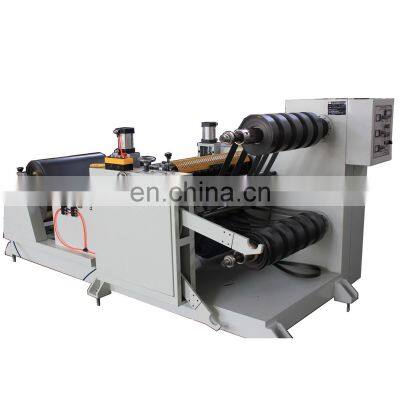

Insulation paper foam tape pvc film slitting rewinding machine

Product Description

Product Description
Product DescriptionFunctional characteristics:1.High precision and high sensitivity slitting,With 3 inch unwind and rewind air shaft.2.Tension is controlled by magnetic powder clutch.3.Frequency motor control speed.4.The rubber roller is lifted up and down by air cylinder,It has the laminating and pulling material function.5.With standard 8 rotary slitting blade,the slitting width can be adjustable,and the minimum slitting width is 25mm.6.Automatic photoelectric rectification and meter count. 7.2 rewind shaft are controlled by magnetic powder tension independently,It can rewind at the same time and rewind separately.8.With air blower for trimming material.9.If your material with adhesive,the aluminum guiding roller will make as the teflon roller.ModelDP-650DP-1300DP-1600Max Feeding Width650mm1300mm1600mmMinimum slitting width25mm25mm25mmRewinding Diameter600mm450mm450mmUnwinding Diameter450mm600mm600mmPrecision± 0.1mm± 0.1mm± 0.1mmVoltage220V 50HZ380V 50HZ380V 50HZSpecificationitemvalueApplicable IndustriesInsulation paper foam tape pvc film slitting rewinShowroom LocationNoneConditionNewTypeSlitting RewinderComputerizedNoPlace of OriginChinaJiangsuBrand NameDapengVoltage220V 50HZDimension(L*W*H)2000mm*1400mm*1300mmWeight1222kgWarranty1 YearProduction Capacity150 m/minKey Selling PointsEasy to OperateMax. workable width650MMMachinery Test ReportProvidedVideo outgoing-inspectionProvidedMarketing TypeInsulation paper foam tape pvc film slitting rewinding machineWarranty of core components2 yearsCore ComponentsPLCPLC BrandMITSUBISHICutting materialsInsulation paper foam tape pvc film slitting rewinding machineAfter Warranty ServiceVideo Technical Support Online SupportOutput paper650MMSpeed120m/minoutput diameter600mmrewinding diameter450mmmin cutting width10mmCutting wayvertical cutCutting Precision0.1mmCompany ProfileTitle goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
