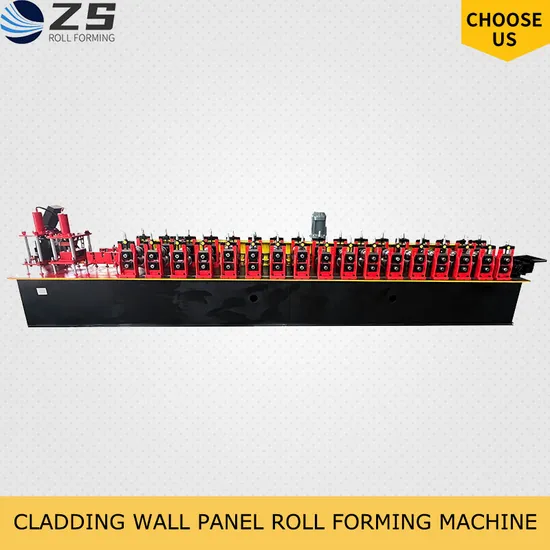

High-Quality Cladding Panel Production Equipment for Industrial Use

Product Description

Product Description
Exterior Wall Decoration Cladding Panel Selflock Making Roll Forming MachineOur versatile machine is meticulously engineered to cater to all your fabrication needs. It is adept at rolling holes on surfaces and punching side holes. Uniquely designed, this machine allows the production of two different sizes through simple adjustments of space and cutting blade, eliminating the need for additional setups.

Profiles:
We offer bespoke customization of the machine tailored to your specific design and requirements:
Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set

Working Flow:
Uncoiler ----- Feeder ----- Rolling Holes ----- Roll Forming ----- Punching Holes ----- Automatic Control System----- Automatic Cutting System ----- Products Receiving Tables
Detailed Photos
Feeder System:
Our feeder system features the latest design innovations for optimal performance.Ensures stable operation with zero coil swing.Easily adjustable for various specifications.Working width: Up to 600mm
Main Roll Forming System:
Forming Machine Structure: Constructed from casting steel for enhanced strength and stability.Roller: Manufactured from high-precision Cr12, ensuring superior performance.Shaft: Made from 45# steel with a 70mm diameter.Motor Power: 5.5kW, customizable as per design requirements.
Roller Details:
Achieving roller precision through CNC-center processing, ensuring exceptional accuracy and flawless products.
Hydraulic Punching & Cutting System:
Working Model: Standard Hydraulic CutterCutter Blade Material: Premium Cr12
Punching System: Configurable for side holes via advanced program settings.
PLC Control System:
PLC Brand: Delta
Touch Screen: Delta
Intuitive and user-friendly operation.
Order No. 20
Hydraulic Oil Pump System:
Equipped with an efficient fan cooling system.
Power: 4kW
Integrated gear pump.
PLC Control System
Automatically regulates quantity and cutting length for optimal output.
Input production data (batch, pieces, length, etc.) directly on the touch screen to streamline the entire production process.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) Or Delta(Taiwan brand)
Inverter	Siemens (German brand) Or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) Or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) Or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. Warranty period extends18months from the date the client receives the machine.
Within these 24 months, any replacement parts will be shipped to the client at no additional cost.
2. Comprehensive lifetime technical support is provided for all our machines.
3. Technicians are available for on-site installation and worker training at the client's factory for an additional fee.
Terms of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
