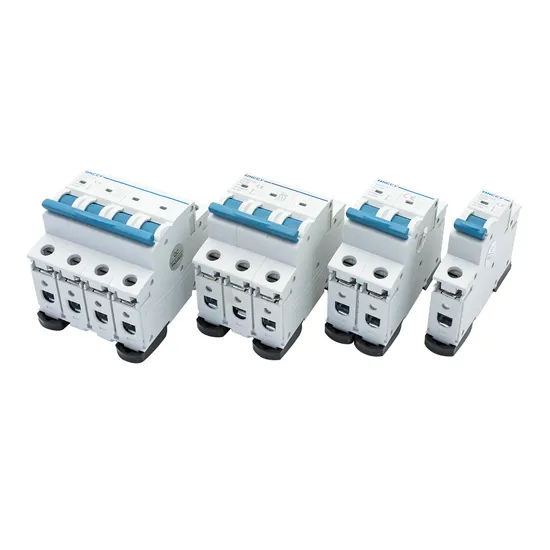

Circuit Protection 1p 2p 3p 4p 250V~1200V B/C 60A DC No -Ploarized Breaker for Solar PV Battery

Product Description

Parameter Description	Unit	Value
Rated Voltage	V	250V/500V/750V/1000V; 100V 200V
Rated current	A	6,10,16,20,32,40, 63; 63, 80, 100, 125, 250
Power frequency withstand Voltage	kVrms	4
Impulse withstand Voltage	kVpk	6/10
Tripping Characteristic type		Type B	Type C
Instantaneous Tripping range according to IEC/EN 60898-1		3-5x 1	3-10x I»
Rated breaking capacity	kA	6/10	6/10
Energy Limitation Class		3	3
Mounting		DIN rail (DIN EN50052)
Mechanical Endurance	cycles	20,000
Electrical Endurance	cycles	10,000
Conductor Size	mm2	Up to 25
Degree of protection	IP	55

tests in accordance with IEC 60898-1: Indelibility of Marking Resistance to heat Resistance to abnormal heat and to fire Resistance to rusting. Resistance to Mechanical shock and Impact Short-Circuit Mechanical and Electrical endurance Tripping Characteristic Temperature rise Dielectric Properties Protection against electric shock Reliability of terminals for external conductors Reliability of Screws, Current carrying parts and connections ASWICH circuit breaker is used for DC rated voltage to 1000V, rated current to 63A line, for overload and short circuit protection, and can also be used as an infrequent operation of the line.Circuit breakers are used in DC applications such as communications and photovoltaic system.
In complicance with IEC/EN606947-2
It has protective function as shortage as overload, and areused in lighting distribution system in commerce and dwelling, andprotect fractional electric motors. And they also have many meritsof high protective grade(up to IP20), high breaking capacity, reliablesensitive action, convenient, multi pole assembling, long life ect.They are mainly adapted to the circuit of AC 50Hz, 250V in singlepole, 415V in double, three, four poles for protecting overload andshort circuit. Mean while, they are also used in turning on or off theelectric apparatus and lighting circuit under the normal conditions.
