Mobile Drum Asphalt Mixing Plant Asphalt Batching Plant for Sale

Product Description

Product Description
Asphalt batching plant, also called asphalt mixing plants or hot mix plants, are equipment that can combine aggregates and bitumen to produce asphalt mix for road paving. Mineral fillers and additives may be required to add to the mixing process in some cases. The asphalt mix can be widely applied for the pavement of highways, municipal roads, parking lots, airport expressway, etc.

Model	LB-1000	LB-1500	LB-2000	LB-3000	LB-4000
Production capacity (tons/hour)	60~80	90~120	120~160	180~240	240~320
Cold aggregate bin capacity (m3)	8	8	10	14	16
Fuel consumption (kg/h)	518	800	1200	1800	2400
Bag filter filter area(m2)	338	474	577	880	1027
Measurement accuracy	≤±2.5%	≤±2.5%	≤±2.5%	≤±2.5%	≤±2.5%
Mixing tank output (kg/batch)	1000	1500	2000	3000	4000
Powder Elevator Flow Rate (tons/hour)	15	15	20	30	40
Total capacity of powder bin (single bin and double chamber) (m3)	30	30	40	50	62
Powder feeder flow rate (tons/hour)	30	40	60	85	110
Powder Screw Conveyor Flow Rate (tons/hour)	10	15	18	25	25
Total installed capacity (KW)	245	274	376	638	696

Working Principle
1. The height of the asphalt plant is reduced to within 15 meters, and is divided into the hot material silo building and the main mixing building. The hot aggregate is transported to the main mixing building via a lifting trolley (which ensures the accuracy of the proportioning and is better than the elevator structure) after measuring. The asphalt plant is centrally placed in the factory building in the industrial park to achieve industrialized production.
2. The asphalt plant is equipped with high-end environmental protection configuration. The discharging of dust, smoke and noise meets international environmental protection requirements.
3. High metering accuracy, short mixing cycle, and high output.
4. Ground warehouse type batching system, optional intelligent background feeding system.
5. Container modular design, integrated installation, convenient and quick installation and debugging.

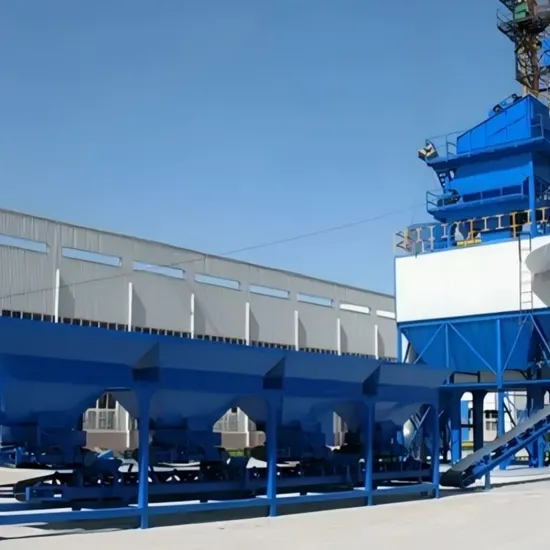

Product Showcase
Company Profile
Tai'an Chenli Construction Machinery Co., Ltd. is a technology-based company focusing on the development, design, manufacturing, engineering and service of intelligent complete equipment for building materials. Based on a deep understanding of building intelligent equipment, Taian Chenli is committed to providing users with "practical, efficient, low-carbon, environmentally friendly, intelligent and advanced" intelligent equipment products. The products win the trust of the market with high standards and high reliability, and are deeply trusted by users.
Certification
FAQ
1. Do you offer warranty on your equipment?
Yes, we offer a full warranty on new equipment purchasing.
2. Where is the port of loading?
Normally the port of loading is QINGDAO PORT, SHANDONG, CHINA.
3. Can you print other LOGO on your machine?
Yes, we can, and we also offer OEM service.
4. Who are we?
We are professional manufacturer of concrete batching plant.
5. Where are you?
We are located in TAIAN City SHANDONG Province China.
