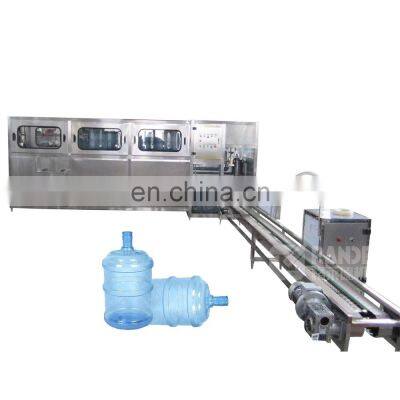

5 Gallon Bucket Water Filling Machine / Bottling Line
Product Description
Brief introduction :
1) This 5 gallon water filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This 5 gallon bottling line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, easy operation, and high degree of automation. It is a new kind of 5 gallon barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
Machine picture:
Deapping Machine
Outside and Inside Brushing Machine (2-in-1)
Automatic barrel loader
Two rows with 10 washing process
2pcs Filling Heads
Capping Machine
Light chcker and Shrink machine
Main technical data:

Model	QGF-100	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	2	3	4	6	12
Volume	3&5 Gallon
Barrel size	Φ270*490mm
Capacity(b/h)	60-100	100-240	250-300	400-450	600-800	800-900	1000-1200
Air pressure(MPa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Air consumption(m³/min)	0.37	0.37	0.6	0.8	1	1.5	1.8
Motor power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated voltage	380V/ 50HZ
Weight(KG)	680	800	1500	2100	3000	3500	4500
