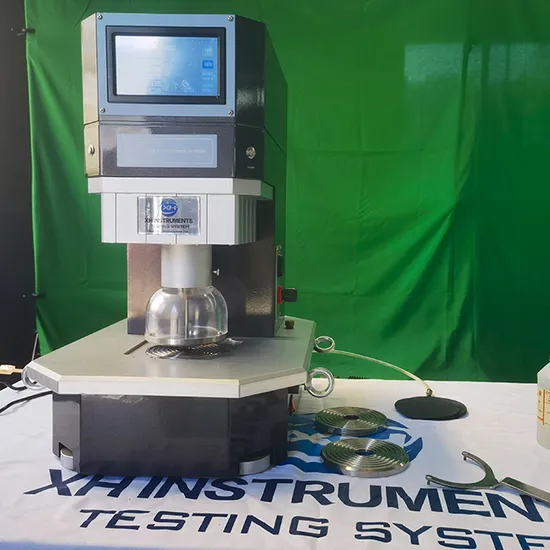

Bursting Strength Tester for Testing Fabric, Textile
This XHF-16 Fabric Bursting Strength Tester is a powerful, multi-industry instrument that has been extensively re-designed with a modern look and a range of new features that inherently make it possible to test a wide range of materials including textiles, nonwovens Cloth, paper, cardboard, plastic and medical products.
Test Standard:
GB/T7742.1, FZ/T60019, FZ/T01030, ISO 13938.1, ISO 13938.2 , ASTM D 3786, JIS L1018.6.17, IWS TM29
Features:
1 . Multiple test chuck can be selected to meet different standard.
2. The test cover is a high transparent organic glass with a built-in LED clamp, which can clearly observe the test process of the sample. It is magnetite to absorb and install, and it is convenient to replace and disassemble, Integrated safety shield.
3. The sample clamping surface is a special tooth-shaped clamping surface, which is automatically and pneumatically clamped. The clamping force and bursting force of the sample are on the same axis; the uniform clamping force is adjustable; it can be used for clamping various materials in all directions hold.
4. Clamping Pressure - adjusts sample clamping pressure to the requirements of the standard.
5. Automatic Flow Control - ensures that the sample will burst in the time frame specified by the standard.
6. Diaphragm Correction - subtracts out the pressure it takes to inflate the bare diaphragm.
7. Laser Distension Measurement - many tests want the height of the bursting point.
8. Equipped with imported servo driver and motor, hydraulic oil volume rate: 8ml/min-500ml/min (adjustable) feedback adjustment is precisely controlled to ensure that the sample is broken within 20±5S. It truly reflects the bursting performance of the sample.
9. The wide test results can be directly display, such as: burst strength, burst strength, diaphragm pressure, burst height, burst time.
10. Equipped with printer interface and online interface.
11.The table surface of the instrument itself is made of special aluminum, which is light and clean, and never rusts.
12. Equipped with a laser distance measurement system, the burst height can be measured accurately and without interference.
Technical Parameter:

Test Mode	Hydraulic	Pneumatic
Test Range	0-2Mpa	0-1200Kpa
Resolution	1Kpa
Test accuracy	≤±1%
Distension	0.1-70mm
Distension Accuracy	±0.1mm
Speed	8ml/min-500ml/min adjustable	10Kpa/s-200Kpa/s adjustable
Test bell	50cm²(φ79.8mm±0.2mm), 7.3cm²(φ30.5mm±0.2mm)
Clamping Control	2 Buttons, Pneumatic
Test method	Constant Speed Method, Fixed Pressure Method, Fixed Distension Method
Dimension	500mm×700mm×700mm
Weight	200Kgs
Power Supply	AC 110V/220V, 50/60Hz

Bursting Strength Tester for Testing Paper, Corrugated Board
Technical Parameter:

	XHV-02A	XHV-02B
Test specimen	Paper	Corrugated Board
Power Supply	Power:220V±10 50HZ
Circumstance Temperature ºC	20±10
Relative Humidity %	< 80
Hydraulic oil	Silicon Oil 85%, distilled water 15%
Horsepower	Shockproof motor 1/4HP
Induction way	Pressure converter
Indicating way	Touch screen display
The Diameter of upper Platen hole mm	30.5±0.05	31.5±0.05
The Diameter of Lower Platen hole mm	33.5±0.05	31.5±0.05
The dimension of rubber film mm	Thickness 0.8---0.9	The height of middle bulge 2.5±0.2 The height of middle bulge 27.8
The resistance of rubber film mm	When raise 9mm,20-40	When raise 10mm,170-220 When raise 18mm,250-350
The tension between two platen Kpa	≥430	≥690
Testing Range Kpa	70-1570	250-5600
Resolution Kpa	0.1 Kpa	1Kpa
Oil ml/min	95±15	170±15
Dimension	500×300×540 mm
Weight	48kgs
