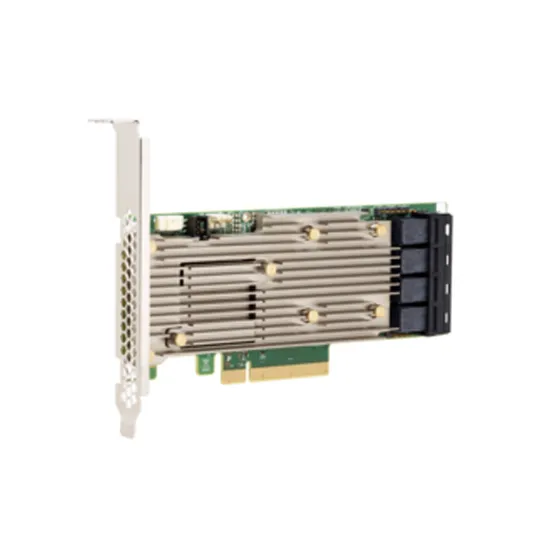

Broadcom Sas Megaraid 9460-8I 05-50011-02 8-Ports Tri-Mode 2 X Sff8643 2GB DDR4 Pcie Controller

Product Description

Product ParametersFeature / Model16 Internal Ports8 Internal Ports8 Internal/8 External Ports8 Internal Ports (OCP)

Ports	16 internal	8 internal	8 internal / 8 external	8 internal
Connections	Four (x4) SFF-8643	Two (x4) SFF-8643	Two (x4) SFF-8643,	Two SFF-8643
			Two (x4) SFF-8644
Storage Interface Support	SAS, SATA, PCIe (NVMe)	SAS, SATA, PCIe (NVMe)	SAS, SATA, PCIe (NVMe)	SAS, SATA, PCIe (NVMe)
Max PCIe (NVMe) Direct Connect	Four x4, Eight x2	Two x4, Four x2	Two x4, Four x2 (Internal only)	Two x4, Two x2 (Direct connect only)
Max Devices per Controller	SAS/SATA: 240, NVMe: 24	SAS/SATA: 240, NVMe: 24	SAS/SATA: 240, NVMe: 24	SAS/SATA: 63, NVMe: 2
Cache	4 GB 2133MHz DDR4 memory	2 GB 2133MHz DDR4 memory	4 GB 2133MHz DDR4 memory	N/A
I/O Processor / SAS Controller	SAS3516	SAS3508	SAS3516	SAS3408
Host Bus Type	PCIe 3.1 x8	PCIe 3.1 x8	PCIe 3.1 x8	PCIe 3.1 x8
Cache Protection	CacheVault CVPM05	CacheVault CVPM05	CacheVault CVPM05	N/A
Physical Dimensions	6.127" x 2.712" (155.65 mm x 68.90 mm)	6.127" x 2.712" (155.65 mm x 68.90 mm)	6.600" x 2.712" (167.65mm x 68.90mm)	6.127" x 2.712" (155.65 mm x 68.90 mm)
Typical Power Consumption	17.02W	14.16W	17.71W	10.05W
Airflow	55LFM at 250°C	55LFM at 250°C	250LFM at 55°C	200LFM at 55°C
Operating Conditions	Operating Temp: 0°C to 55°C, 20% to 80% non-condensing	Operating Temp: 0°C to 55°C, 20% to 80% non-condensing	Same as above	Same as above
	Storage: -45°C to 105°C, 5% to 95% non-condensing	Storage: -45°C to 105°C, 5% to 95% non-condensing
MTBF (Calculated)	>3,000,000 hours at 40°C	>3,000,000 hours at 40°C	>3,000,000 hours at 40°C	>3,000,000 hours at 40°C
Operating Voltage	+12V +/-8%; 3.3V +/-9%	+12V +/-8%; 3.3V +/-9%	+12V +/-8%; 3.3V +/-9%	+12V +/-8%; 3.3V +/-9%
Hardware Warranty	3 years; Advanced replacement option	3 years; Advanced replacement option	3 years; Advanced replacement option	3 years; Advanced replacement option
Management Software	LSI Storage Authority (LSA), StorCLI (Command Line interface), HII (UEFI Human Interface Infrastructure)	Same as above	Same as above	Same as above
Regulatory Certifications	USA (FCC 47 CFR Part 15 Subpart B, Class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); South Korea (RRA no 2013-24 and 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE	Same as above	Same as above	Same as above
OS Support	Microsoft Windows. Contact Oracle support for Oracle Solaris drivers or software support. For version details, see support/download-search.	Same as above	Same as above	Same as above

Product DescriptionThe industry's first hardware RAID adapter using the third mock examination SerDes technology
Broadcom can realize high-performance storage connectivity and flexible system support Any combination of NVMe, SAS and SATA devices is designed with the industry's first hardware RAID adapter with the third mock examination SerDes. This MegaRAID 9400 series adapter extends the industry-leading 12Gb/s storage adapter from Broadcom, with 8 and 16 port internal, external, and combined three mode port options.
NVMe performance improvement for storage
MegaRAID the third mock examination storage adapter brings NVMe performance advantages to the storage layer. MegaRAID technology has been used on the SAS/SATA interface for more than 20 years by providing connectivity and data protection. Based on dual core SAS3516 or SAS3508 on-chip RAID (ROC) and 72 bit DDR4-2133 SDRAM, these controllers provide improved bandwidth and IOPS performance compared to previous generation products, making them ideal for utilizing internal storage or connecting to large-scale external storage enclosures.
Unlimited design flexibility using the third mock examination controllers
Broadcom's the third mock examination SerDes technology can realize the operation of NVMe, SAS or SATA storage devices in a single drive bay. A single controller can provide service drives for NVMe, SAS, or SATA simultaneously in all three modes. The controller negotiates between speed and protocol to seamlessly collaborate with any of the three types of storage devices. The third mock examination support provides a non disruptive way to develop existing data center infrastructure. By upgrading to a the third mock examination controller, users can expand beyond SAS/SATA and use NVMe without making major changes to other systems.Company ProfileBeijing Yuanshengyuan Technology Co., Ltd. is a high-tech enterprise integrating independent research and development, sales and service. Its headquarters and R&D base are located in the scenic Zhongguancun Science and Technology Park in Beijing. The company's sales network covers the whole country, strong technology and research and development strength, and is committed to becoming a "high-tech enterprise" recognized by the government.Since its establishment, the company has always adhered to the corporate philosophy of "service first, mutual benefit and win-win", gathered the industry elites, combined the advanced foreign information technology, management methods and enterprise experience with the specific reality of domestic enterprises, and took "embedded, intelligent, systematic and integrated" as the technology orientation. To provide users with reliable automated communication transmission products and embedded innovative solutions, to provide comprehensive system integration, hardware, software, user-centered design services.Our business involves industrial Ethernet communication, industrial fieldbus transmission, industrial optical fiber access, industrial computer and power management system and other professional fields. The main products have independent knowledge and monopoly, and many international certifications such as CE, FCC, RoHS, IEC61850 and various industry standard certifications such as EMC and electromagnetic compatibility in the power industry. And strive to pass the State Grid Electric Power Research Institute A class certification test and many other domestic professional organizations organized technical testing and certification, to meet the smart grid, coal mine safety, rail transit and other industry standards.Adhering to the forward-looking market concept, excellent communication products and the principle of customer interests first, Our Communication relies on a series of embedded products with independent intellectual property rights, industrial Ethernet switch products, fieldbus communication transmission and industrial communication management machine and other products. In the fields of power, energy, rail transit, shipping, environmental protection, coal, petrochemical, industrial control and other systems, the products have been successfully applied to the Beijing Games, Wuhan Metro Line 2 and 4, Chongqing Metro, Three Gorges water Conservancy, Huaneng wind power and many large coal mines and other national key projects.The future development of the company will continue to be market-oriented, innovation as the driving force, survival by quality, development and growth, with continuous innovation of communication technology to create greater value for customers, and gradually establish the company in China's industrial automation communication industry leader position!
