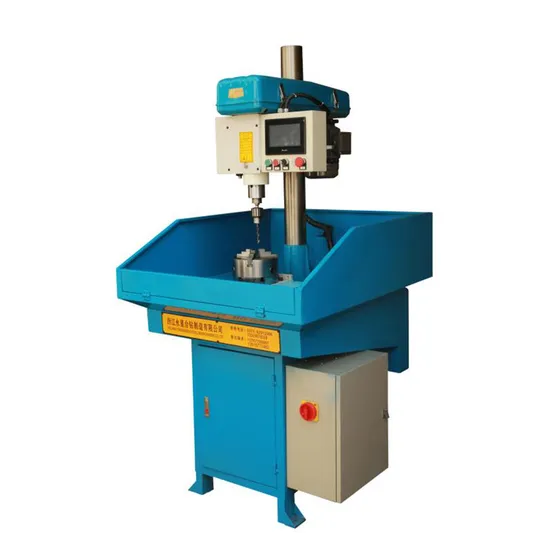

Wholesale Multi Hole Group Dual Servo CNC Drilling Machine with Water Tank
| US$2,470.00-3,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
ZK-25
Structure
Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
101-150mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Worktable Size
400*370mm
Outer Dia. of Stand Column
102mm
Outer Dia. of Spindle
75mm
Spindle Taper
Mt3
Spindle Speed
500/810/1200/1800rpm
Transport Package
Wooden
Specification
350KG
Trademark
Yongxiong
Origin
Zhejiang, China
HS Code
8465920000
Production Capacity
10000sets/Year
Product Description
Product Description
Wholesale Multi hole CNC drilling group drilling dual servo CNC drilling machine with water tank
1.The machine mainly consists of the bed and the longitudinal slide table ,gantry and the horizontal slide table , the vertical sliding pillow drilling power box , the work table ,the electric control system, the hydraulic system,the cooling system,the chip system ,the centralized lubrication system and so on.
2.The machine adopts movable gantry and fixed worktable ,save the floor area.
3.The spindle motor uses a special servo motor to drive the spindle through the synchronous belt, stepless speed regulation ,low speed torque , can withstand heavy cutting load ,and can be suitable for high-speed machining of hard alloy tools.
4.With high precision,the main shaft is 0.01mm5.Compact structure, good rigidity 3.Using circular body, easy to install
Detailed Photos
Product Parameters
| Effective size of worktable | 400*370 |
| Outer Diamter of stand column | 102mm |
| Outer Diameter of Spindle | 75mm |
| Spindle Taper | MT3 |
| Spindle Stroke | 85mm |
| Distance between stand column and spindle axis | 270mm |
| Servo Motor | Servo 2.6kwX10Nm |
| Max drilling capacity | Φ 25mm/S45C |
| Net Weight | 350kg |
