PRO Ts-400p TIG Welding Machine

Product Description

TAYOR group have a wide range of products:
welding machine: MMA, MIG, TIG, CUT, SUB for both light industry and heavy industry.
Welding consumables: electrodes and wires.
ROBOT welding machine
Please kindly inform us of your detailed requirement, we will recommend suitable models with detailed specification.

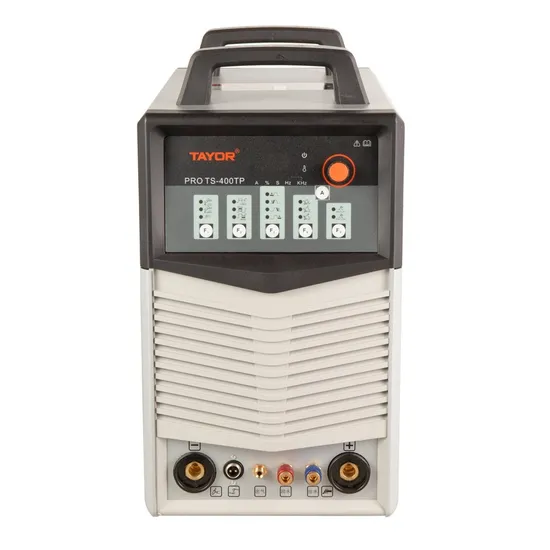

PRO Ts-400p Inverter Digital DC Pulse High Frequency TIG Welding Machine
Features
The PRO TS-400TP is a brand new release, full digital control, DC stick /HF TIG power source. Combine this with features like high frequency start, up/down slope, pulse, pre flow time, post flow time, hot start, arc force function. you've got the ultimate unit designed for precision TIG welding of stainless steel and other DC weldable materials. All welding parameters are variable for complete adjustment of the welding process.
All these features are laid out on an easy to use digital display front panel with a single index control knob and push button mode selection.
All welding parameters are adjustable
Exceptional DC welding characteristics
Single index control knob
Embedded micro process or with digital controls
Easy to use digital display and panel controls
HF starts TIG & Stick weld operations
2T , 4T with up/down slope modes
Technical Parameter

Input Voltage	380V 3ph 50/60Hz
Input Current	22 A
Open Circuit Voltage	70V
Welding Current	10~400A
Duty Cycle (40ºC)	60%@400A
Pulse frequency	0.2~2000Hz
Insulation Class	H
Protection Class	IP21S
Dimensions(L*W*H)	547*262*501mm
Weight	27 KG
