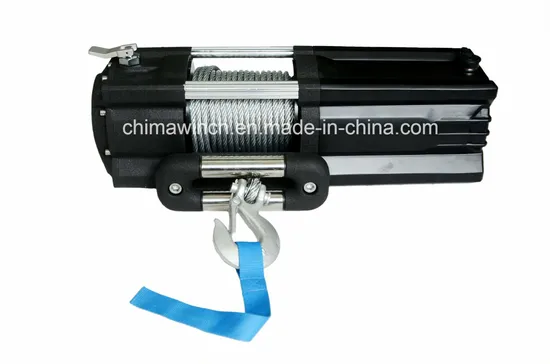

High Performance Popular 5500lbs Trailer Winch
| US$138.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
CMS5500-T
Driving Type
Electric Motor
Certification
CE, ISO
Driving Motor Number of Mechanical Lift
1
Double Cylinder Lift Type
Pull
Shearing Lift Type
Pull
Condition
New
Brand
Chima
Design
New
Color
Black
Cover
Semi-Transparent Plastic
Fairlead
Included
Controller
Switch Included
Transport Package
Color Box or Export Carton Box
Specification
18.7"x8.26"x6.53" (475x210x166mm)
Trademark
OEM
Origin
China
HS Code
3352960157
Production Capacity
50, 000PCS/Year
Product Description
This winch is equipped with a permanent magnet motor and is designed for INTERMITTENT GENERAL DUTY USE. But not intended for use in industrial or hoisting applications.| 5500lbs Features and Specification | |
| Single line rated pull | 5500lbs (2500kgs) |
| Motor | 2.5hp, 12V DC permanent magnet |
| Controller | Remote switch |
| Gear train | 3 stage planetary |
| Gear reduction ratio | 234:1 |
| Braking | Automatic |
| Drum size | Diameter 2.24 in. (57mm) Length 5.12 in. (130mm) |
| Cable | 1/4" (6.3mm) × 60' (18.288m) |
| Battery | 12 Amp/hour minimum (12V DC batteries only) |
| Net weight | 21.5kgs |
| Overall dimension | 18.7" × 8.26" × 6.53" (475 × 210 × 166mm) |
| Mounting bolt pattern | 5.98 in. x 4.48 in. (152 mm x 114 mm) M10 |
Performance Data | Line Pull and Rope Capacity in Layer | |||||
| Line Pull lbs (kgs) | Line speed ft/min (m/min) | Current (amps) | Layer | Rated line pull lbs (kgs) | Total rope on drum ft(m) | |
| 0 | 4.8 | 26 | 1 | 5500(2500) | 10.8(3.3) | |
| 1500(681) | 3.6 | 92 | 2 | 4570(2077) | 24.6(7.5) | |
| 3000(1363) | 3.0 | 150 | 3 | 3910(1777) | 39.3(12.0) | |
| 4500(2045) | 2.2 | 206 | 4 | 3415(1552) | 55.4(16.9) | |
| 5500(2500) | 1.8 | 250 | 5 | 3030(1377) | 60.0(18.3) | |
