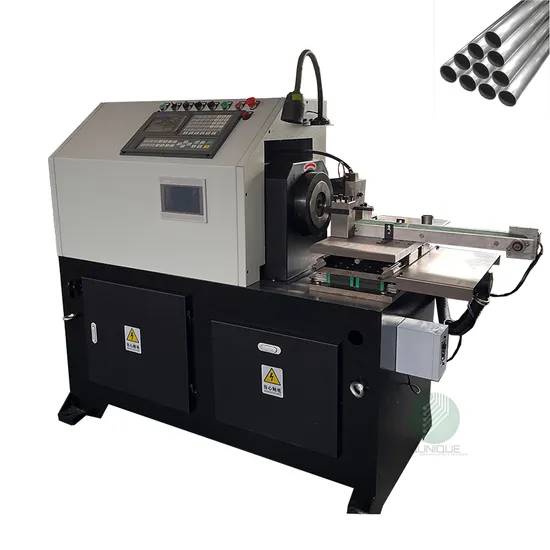

90 Automatic Metal Pipe Cold Cut off Saw CNC Stainless Steel Pipe Cutting Machine

Product Description

Product Description
Technical Specification

Model	YE-90
Cutting capacity	20mm-90mm
Spindle speeds	600/800
Power type	AC current
Supply voltage	380V
Power	4kw/5.5kw
Overall dimensions	1600X800X1600mm
Machine weight	1200Kg
Input flow	0.55-0.7KPa
Tolerance range	within±0.05mm

Main uses and characteristics of machine tools:
1,This machine is suitable for cutting all kinds of pipe materials, especially for mass production of bearing enterprises. The machine adopts PLC control, advanced servo system positioning and cutting, one feeding multiple cutting, with high precision and high efficiency. The detection of each cutting workpiece of the machine tool makes up for the shortage of the feeding of oil, rust and bending materials in the previous machine tool and the disadvantage of rebound after feeding, so as to eliminate the occurrence of waste products.
2,The machine has broken blade and no material alarm.
3,The machine adopts cross roller quenched guide rail, which has the characteristics of good rigidity, small rolling friction and long life.
4,Vertical and horizontal servo system control.
Machine parts configuration and origin brand

No	key component	Specifications	Qty.	Power	Brand
1	Main motor	Level 3	1 set	4KW	Zhejiang mingsu motor
2	Electric system	ECM series AC servo	2 set	1kW/750W	Taiwang taida
3	Display touch screen	TPO49-BL-CU	1 set		Taiwang taida
4	PLC	DVP4ES2/40	1 set		Taiwang taida
5	Lead screw/cutting feed	20-5	1 pcs		TBI
6	Lead screw/Feeding Material	25-10	1 pcs		TBI
7	Guide rail	Type 25	4 pcs		TBI
8	pneumatic component	4V210	3 pcs	24V	JRI
9	Bearing	7016P5BB/2pairs 7018P5DBB 32024P5 32022P5	5 pair		Haerbin
