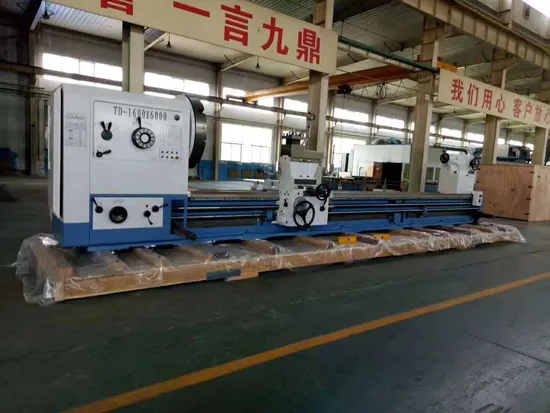

Cw61160d-5m Conventional Horizontal/ Lathe Large Size Lathe / Heavy Duty Lathe /Swing Over Bed 1640mm Lathe

Cw61160d-5m Conventional Horizontal/ Lathe Large Size Lathe / Heavy Duty Lathe /Swing Over Bed 1640mm Lathe

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
Cw61160d-5m
Guide Rail
Horizontal Guide Rail
Tool Holder
Single Turret
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Horizontal Lathe
Swing Dia. Over Bed 1640mm
Big Lathe
6tons
Heavy Duty Lathe
6tons
Transport Package
Wood Package
Trademark
precion
Origin
Dezhou, Shandong
HS Code
8458190000
Production Capacity
500 Sets/Year

Product Description

CW61160D AND CW62160D
These lathes can perform to turn end-faces, cylindricl surfaces and
internal holes of various parts as well as metric,inch,module and pitch threads.The top slides can be operated individually by power for cutting short taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed of the carriage with the top slide feed,moreover,the machines may be used for drilling,boring and trepanning.
They are characteristics of power,high spindle speed,high rigidity.The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.
Main Specifications and Features
Main Specifications and Features
SPECIFICATION Model
CW61160D CW62160D
Max.swing diameter over bed 1640mm
Max.swing diameter over carriage 1030mm
Max.swing diameter on gap 2100mm
Width of bed 755mm
Max.length of workpiece 5000mm
Loading weight between centers 6t
Spindle nose A15(1:30)
Sindle bore diameter 130mm
Taper of spindle bore Metric No.140#
Range of spindle speed clockwise rotation 3.15-315r/min, 21kinds, counter-clockwise rotation 3.5-290r/min, 12kinds
Spindle front bearing inner diameter 200mm
Longitudinal feeds range 0.1-12r/min 56 kinds
Transversal feeds range 0.05-6mm/r 56kinds
Rapid speed Z-axis 3740mm/min
X-axis 1870mm/min
upper toolpost 935mm/min
Metrec threads range 1-120mm 44kinds
Inch threads range 3/8-28 TPI 31kinds
Module threads range 0.5-60mm 45kinds
Pitch threads range 1-56TPI 25kinds
Taper of tailstock sleeve Morse NO.80
Diameter of tailstock sleeve 160mm
Travel of tailstock sleeve 300mm
Main motor power 22kW
Rapid motor power 1.5kW
Coolant pump power 0.125kW

Stand Accessories
1. four-jaw chuck F 1000mm 1set
2. steady rest F70--480mm(for more than 2m) 1set
3. follow rest (for more than 2m) 1set
4. Morse 6# centers 1set
5. center sleeve 1set
6. tools 1set
7. foundation screws 1set
Special Accessories Special order
1. steady restF 400--700mm
2. four-jaw chuck F 1250mm
3. Taper-turning device
4. Chasing dial device
5. Inch lead screw,
6. levelers
7. roller support (opened steady rest)
