Stone Factory Machines Multi Blade Disk Cutter Machines Block Cutting Machines Big Stone Bridge Saw Machines for Granite

Stone Factory Machines Multi Blade Disk Cutter Machines Block Cutting Machines Big Stone Bridge Saw Machines for Granite

US$49,000.00-53,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SQC1800/2200/2600/3000-4D Super
Usage
Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
CCC, ISO, CE
Drive
Lead Screw Drive
Guide
Linear Guide Rail
Guide Rail
Linear Guide
Max. Blade Diameter
1800/2200/2600/3000mm
Feed Table
2000X2000mm(Opational)
Max Processing Length
7200/6800/6400/6000mm
Max Processing Width
6000mm
Max. Lifting Stroke
1350mm
Water Consumption
20 M3/H
Main Motor Power
110/132kw
Total Power
128/150kw
Cross Beam Length
10500/9500mm(Can Be Customized)
Side Beam Length
8500mm(Can Be Customized)
Weight
33000kg
Color
Red and Black(Can Be Customized)
Transport Package
Plastic Packing
Specification
11500*9000*3700mm
Trademark
JOBORN
Origin
Quanzhou, China
HS Code
84641010
Production Capacity
50 Sets Per Month

Product Description

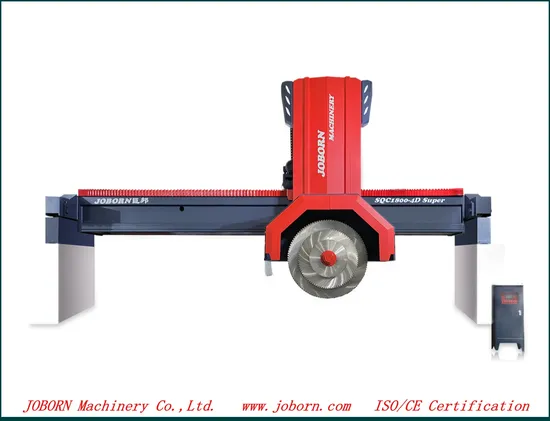

JOBORN Stone Factory Machines Multi Blade Disk Cutter Machines Block Cutting Machines Big Stone Bridge Saw Machines for Granite, Super Efficiency Stone Cutting Machinery
JOBORN SQC1800/2200/2600/3000-4D Super Block Cutting Machine. This series machine adopts microcomputer control system and human-machine interface, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system , combination of chrome-plated guide pin and wear guide bush, with small gap , wearable, beautiful structure , and guide sleeve with multi-layer seals , with waterproof , dust-proof , anti-spill , improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost; forward-backward automatic slicing uses high-precision screw nut driving, main spare parts adopt imported good-quality materials; The block can be placed in the ground directly to save worktable and its maintenance costs; thus the whole machine is featured as high cutting efficiency, high slicing precision, and flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite and marble block with high value and big size.
Main Features

1.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable.
2.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more.
3.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor.
4.Side-beam rails use slide V-rail, contacting area is large, not easy to shake when cutting, ensure the plate/slabs are flatness after cutting; meanwhile,the forward and backward slicing take high precision screw-nut transmission, have automatic slicing fuction.
5.It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life.
6.Revolving working platform (Optional)
Taiwan famous brand hydraulic system
Domestic first-line brand efficient energy saving main motor
Humanized human-computer interaction interface
Imported and domestic premium brand electric components
The side beam track adops sliding V rail
Four guide column,double hydraulic lifting
Rotary working platform(optional)
Processing Display:
Product Parameters
SQC1800/2200/2600/3000-4D Super Block Cutting Machine (max 32 blades)
Appellation Unit SQC1800-4D Super SQC2200-4D Super SQC2600-4D Super SQC3000-4D Super
Max.Diameter of saw blade mm Φ1800 Φ2200 Φ2600 Φ3000
Max.processing length mm 7200 6800 6400 6000
Max.processing width mm 6000
Max.lifting stroke mm 1350
Power of main motor kW 110/132
Total power kW 128/150
Water consumption m³/h 20
Dimension(LxWxH) mm 11500x9000x3700(base to peak)
Weight kg 33000

Processing Spot:

Company Profile
Customer Application
FAQ
Q: Are you manufacturer ? A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service. Q: Can I get a machine according to my own requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
