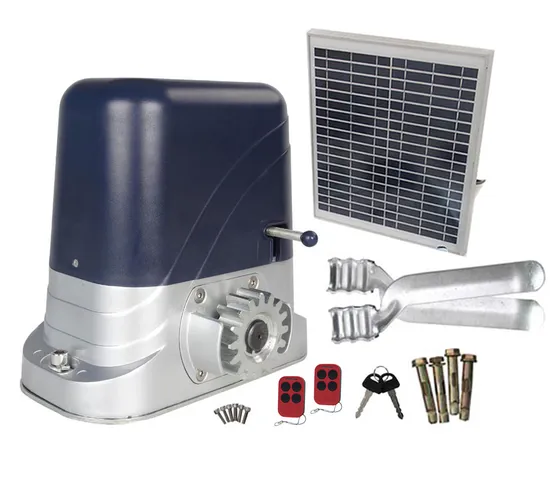

24V DC 500kg Loading Sliding Automatic Solar Gate Opener

Product Description

Solar gate system
1pcs*Solar Panel
2pcs*battery 12v 9AH
1pcs*battery charger
Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration.
Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
24V DC 500kg Loading Sliding Automatic Gate Opener
Features of automatic sliding gate opener
1. AC/DC motor with built in control panel
2. Built in manual override with 2 supplied unqique override keys in case of emergency or power failure.
3. All metal gears make it durable and long lasting.
4. Soft start and soft stop.
5. Resistance sensitivity and auto-closing delay time adjustable.
6. Stop/reverse in case if obstruction during gate opening/closing.
7. Reliable magnetic limit supplied.
8. Back up battery and solar system are available for DC sliding.
9. 12 months guarantee; lifelong post sales service.
Specifications:

Model No	PYM-A2202	PYM-A2203	PYM-A024
Rated voltage	220V±10%/110V±10%
Electronic motor	220VAC/110VAC	220VAC/110VAC	24VDC
Rated motor power	250W	350W	200W
Gear modulus	M=4
Max loading weight	600KG	800KG	500KG
Open/close speed	12m/min	12m/min	16m/min
Output speed	50r/min
Output torque(N.m)	16N.m	22N.m	22N.m
Limit switch type	Magnetic/Spring
Max pull force	1200N
Working temperature	-20°C~+55°C

Control Board
EG-32
1. Totally integrated electrical mechanical system (excludes racks)
2. Single-button control circularly /three buttons control can be chosen
3. Control board interface for optional impact-proof infrared photocells
4. Alarm lamp interface
5. Automatic delayed closing
6. Pedestrian mode
7. Adjustable resistance sensitivity
8. Gate will auto stop and re-open when an obstacle is encountered
9. Wireless remote control or wired remote control is optional
Company Information:
We are leading manufacture and trading company in electronical industry for more than 15 years also have a professional R&D team.With years of export experience along with excellent quality, advanced services and competitive prices, GIANT has won numerous customers' trust and support.
FAQ
1. What should I know before ordering?
The width and weight of your gate door.
2. May I have samples for testing?
Yes, samples are available. The lead time will be 2-3 days for samples.
3. What's the MOQ ?
MOQ 1PCS.
4. How to pay for samples, and how you delivery it?
Samples can be paid by Western union, PayPal, ******. Delivery by DHL, UPS or TNT, if you want to know the cost of delivery, please offer your detailed address with post code. Samples will be delivered within 3 working days, bulk orders within 25 working days.
