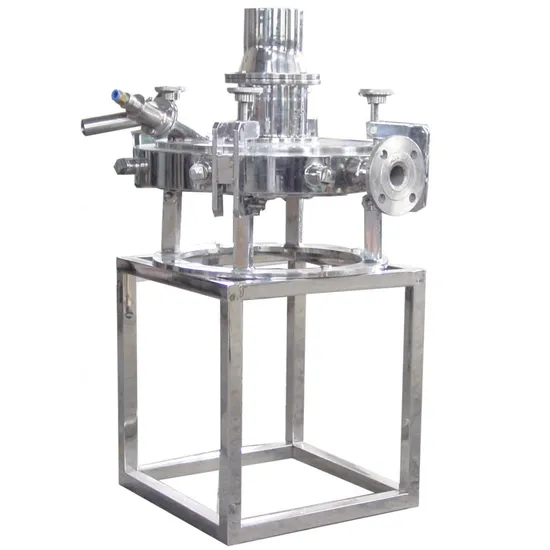

Flat Supersonic Airflow Disintegrator Bqf-100

Flat Supersonic Airflow Disintegrator Bqf-100

US$5,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BQF-100
Cutter Material
High-Speed Steel
Drive
Air
Object
Powder or Granule
Type
Jet Mill
Raw Materials
Stainless Steel, Mild Steel;
Surface Treatment
Paint for Ms; Polish/Sandblasting for Ss
Power Supply
for Different Power Supply Application
Ex-Proof
Available
Customized Features
e.g. Light Glass, Special Dimension etc.
Special Treatment
Wear Resistant and Anti-Corrosion Available
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
<100MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Yes
Warranty
1 Year
Principle
Cyclone Separator
Transport Package
Wooden Case
Specification
BQF-50
Trademark
SENFAN
Origin
China
HS Code
8474209000
Production Capacity
500/Year

Product Description

flat supersonic airflow disintegrator BQF-100 Working Princible The pressure gas by feeding the ejector nozzle to produce high-speed jet and form negative pressure in the feed mixing chamber, so that the crushed raw materials automatically inhaled into the mixing chamber and the jet is injected into the grinding chamber, several nozzles of the periphery of the grinding chamber jet supersonic jet forward to the grinding chamber, so that the particles into the crushing chamber are violent collision and milling then crushed. Coarse particles loop back to the smash indoor to continue crushing, the fine particles in the center of the discharge port discharge, at last gained uniform ultrafine particles.
Performance & Characteristics 1.It is used in dry supermicro technology, as the high impact velocity, can be up to Mach 2.5 above, under normal circumstances, easy access to the 1-10 micron particles.2.As the self-classification of grinder inner, coarse particles in the products endless cycle of crushing, which can get uniform particle size distribution of a small range of products.3.At the crushing process, due to the compressed air expansion, the temperature decreased, it is applied to the crushing of the low melting point, heat-sensitive materials, also play a role in the effect of mixing and dispersion at the crushing process.4.The device has a short crushing time, simple structure, there is no running of moving parts and easy maintenance, operation, small footprint, low noise and vibration advantages.5.The high grinding efficiency, continuous grinding, to maintain the crushed products purity.

Scope of Application The machine is widely used in pharmaceutical, traditional Chinese medicine, pesticide, chemical, metallurgy and other industries of ultra-fine grinding materials, such as carbendazim, methyl tozin, herbicides, silica, pigments, dyes, nimodipine, cortisone and so on.

Product Parameters
/
Parameters/Model
BQF-50
BQF-100
BQF-200
BQF-300
BQF-400
BQF-600
Mpa
Milling Pressure
0.65-0.95

m3/min
Air consumption
1 - 1.25
1.75 - 2.2
3.3-3.5
6-7.5
10 - 13
25 - 32
KW
Air compressor power
11
15
37
55
75
132
Kg/h
Handle capacity
0.2 - 1
0.5 - 5
5-30
10-50
50 - 150
300-600
Kg
weight
60
140
55
80
180
330
mm
Dimensions
890×750×868
1050×500×1380
1700×650×1580
510*510*630
890×750×868
1000X1000X900
Detailed Photos
