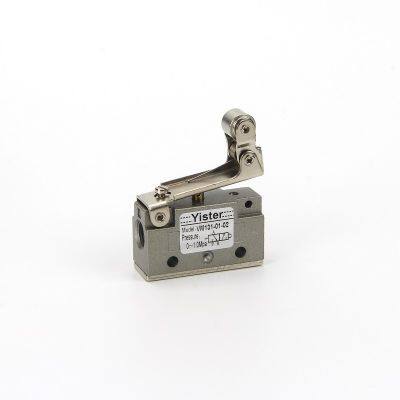

1/8 inch 3 way VM130-01-02 One side Pneumatic Roller Type Mechanical Valves

Product Details

Product Description

Product Description
1/8 inch 3 way VM130-01-02 One side Pneumatic Roller Type Mechanical Valves
Order code
Symbol
Technical parameter

Model	VM130-01-01,VM130-01-02
Material	Aluminum alloy
Fluid	Air,Inert gas
Pressure range	0-1.0 Mpa
Proof pressure	1.5Mpa
temperature	-5 to 60℃
Cv value	2.5mm2
Port size	G1/8:(Side ported) M5*0.8(Bottom ported)
Lubrication	Not required

Dimension
Feature
1)Working media: 40um filtered air
2)Joint pipe bore: G1/4 3/8 1/2
3) Operating pressure: 0-0.8Mpa
4) Operating temperature: 0-60oC
5)VM131-01-01/02 Pneumatic Roller lever mechanical valve
VM130-01-34 Rotary type with selective knob button
VM130-01-33 Spring reset type with Flat round button
VM130-01-37 with Lock button
VM131-01-01 roller lever valve
FAQ
1. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
2.Q: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
3 Q: Do you test all your VM131-01-02 Pneumatic roller lever mechanical valve before delivery?
A: Yes, we have 100% test before delivery.
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The company mainly produces and sells: PU air pipe, quick coupling, solenoid valve, foot valve, mechanical valve, buffer, air control valve, water valve, floating joint, standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder, magnetic switch, air source treatment parts, double, triple, air filter, pressure regulating valve, pressure reducing valve, manifold.
