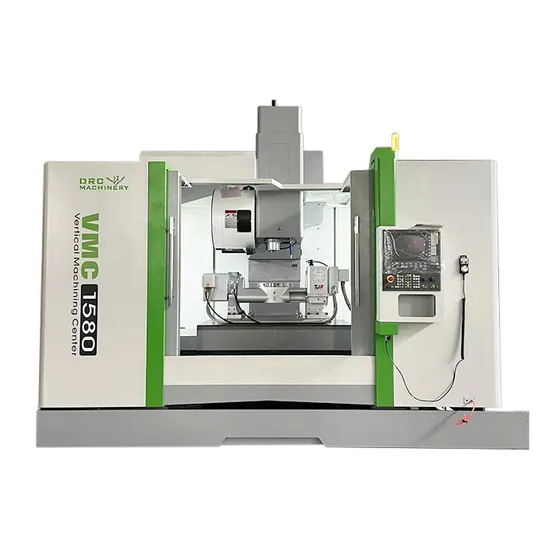

Large Bed 4 Axis CNC Milling Machine High Precision Vmc1580 5 Axis Large CNC Machine Center Price

Large Bed 4 Axis CNC Milling Machine High Precision Vmc1580 5 Axis Large CNC Machine Center Price

US$59,000.00
1-2 Sets
US$58,000.00
3+ Sets

Basic Info.

Model NO.
VMC1580
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 3100x4300x3200mm
Trademark
DRC
Origin
China
Production Capacity
500

Product Description


Large bed 4 axis cnc milling machine high precision VMC1580 5 axis large cnc machine center price
VMC1580 machine tool inherits the advantages of strong rigidity, symmetrical structure, and strong stability of the traditional vertical CNC milling machine, and introduces international advanced dynamic rigid design concepts to optimize the design of moving parts. The machine tool has large torque and good quick response characteristics, which is suitable for the needs of various machining fields such as automobiles, molds, aerospace, military, and hardware.

Model
VMC 1580 (GSK25i system)
Travel parameters of 3 axis

X /Y/Zaxis travel
1500/800/700mm
Spindle face to table distance
130-860mm
Distance between spindle center and column guide surface
810mm
Worktable parameters

Worktable size
1700×800mm
Maximum load bearing of worktable
1800kg
T Shot
5×22×135mm
Feeding parameters

X/Y/Z axis rapid movement rate
20/20/15m/min
Feed moving velocity X, Y, Z
1-6m/min
Spindle parameters

Main shaft connection
Belt
Spindle taper
BT50-155
Range of spindle speed
8000rpm
Spindle motor power
(Alternating current servo)15kW
ATC paremeters

ATC capacity
24qty
Maximum tool size
Φ200mm(tool from a distance)
Maximum tool weight
18kg
Precision

PositionaI accuracy(JIS standard)
±0.005/300
Repeated positioning accuracy(JIS standard)
±0.005
Shape and weight

Machine size
3100x4300x3200mm
Weight
13000Kg
