Kc212A Yarn Winding Machine Hank to Cone Winder Winding Yarn Machine

Kc212A Yarn Winding Machine Hank to Cone Winder Winding Yarn Machine

US$1,250.00
4-59 Spindles
US$1,150.00
60-199 Spindles
US$1,050.00
200-499 Spindles
US$950.00
500+ Spindles

Basic Info.

Model NO.
KC212A
Voltage
220V/380V
Automatic
Semi-Automatic
Certification
CE, ISO
Linear Speed
up to 1100m/Min
Min. Spindles
4
Type of Winding
Digital or Precision Winding
Traverse Length
130mm~250mm
Machine Structure
Single Side, Single Layer
Rated Power
400W/Spindle
Transport Package
Wooden Case
Specification
1780mm*810mm*1380mm/755mm*810mm*1467mm
Trademark
KCGF
Origin
Zhejiang
HS Code
8445409000
Production Capacity
200 Sets Per Month

Product Description


Product Description

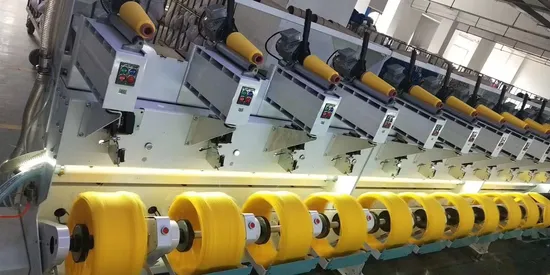

KC212A Semi Automatic Yarn Winding machine Hank Yarn Winder
Intelligent Electronic Yarn Precision Winder
Applied for hank or cone yarn initiative unwinding. Main for unwinding DTY viscose short fiber etc.
Used for rewinding of all sorts of yarns.
Features
A. Improve production efficiency and reduce cost.
High performance servo motor for traverse guide motion for speeds up 1100m/min.
B. Using comprehensive intelligent control technology.
All parameters related to yarn quality can be adjusted at will,
e.g. winding length, edge angle, edge width, soft edge density, package shape, crossing angle, winding tension, etc.
C. A intelligent tension system, active unwinding device and automatic tracking overfeed system,
ensures unifor density of winding package;
D. A beautiful appearance, emits low noise,
has a low power consumption and is ergonomically optimized, the control is simplified.
Product Parameters
Spindle gauge: 440mm; (It can be changed according to actual needs)
Type of winding: digital or precision winding;
Linear speed: up to 1100m/min ( depend on the process parameters );
Machine structure: single side, single layer, 4 spindles/section, 48 spindles/set;
Traverse length: 130mm~250mm; (It can be changed according to actual needs)

Type of tension electronic tension and unwinding proess
Take-up tubes cylindrical or cone
Package shape straight edge or biconical (the taper angle can be adjustable)
Rated power 400W/Spindle
Actual consumption 25~50% of rated power (depend on the process parameters)

After Sales Service
For demo machine set:
4 spindles/set+ Independent Machine headstock
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory; Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturingintelligent winders and twisters, and also researching, developing automation control software for high-end textilemachinery, Kaicheng insists on technological innovation as its core competitiveness of the enterprise, We focus onresearches in the field of twisting and winding technology, and keep up with international level especially somefamous brands from Europe, We are the best choice and replacement for European brands. Kaicheng products arebeing sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and SouthAmerica, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technologyresearch centers to take its research activities, Moreover, Kaicheng has established long-term cooperation relationswith Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery ResearchInstitute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Inteligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.
