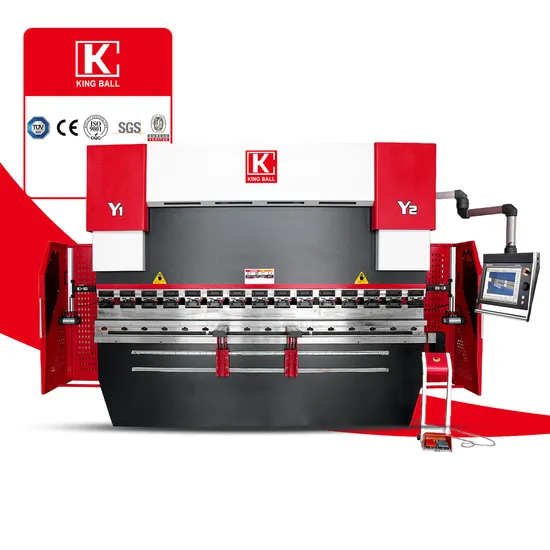

Steel Plate Bending Machine CNC Press Brake with CT600 System

Steel Plate Bending Machine CNC Press Brake with CT600 System

US$9,000.00-48,000.00 1 Set (MOQ)

Basic Info.

Model NO.
da53t
Warranty
2-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE, SGS, TUV
Automation
Automatic
Suitable for
Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Product Name
Electro Hydraulic Synchronous CNC Press Brake
Raw Material
Sheet
Control System
CT8, CT12, Da53t, Da58t, Da66t
Main Motor
Siemens Germany
Throat Depth
320mm
Usage
Metal Sheet Bending
Place of Origin
Jiangsu, China
Size
Customized
Color
All Colors
Transport Package
Nude
Specification
4500x1750x2450mm
Trademark
KING BALL
Origin
Jiangsu, China
HS Code
8462230000
Production Capacity
100 Sets/Month

Packaging & Delivery

Package Size
480.00cm * 450.00cm * 220.00cm
Package Gross Weight
15.000kg

Product Description

Electro-hydraulic CNC Press Brake KCN-10032 KCN-10040 KCN-16032 KCN-16040 KCN-20032 KCN-20040
Capacity kN 1000 1000 1600 1600 2000 2000
Max. Bending Length mm 3200 4000 3200 4000 3200 4000
Between Columns mm 2700 3200 2700 3200 2700 3200
Max. Shut Height mm 480 480 480 480 480 480
Slide Stroke mm 200 200 200 200 200 200
Throat Depth mm 350 350 350 350 400 400
Down Speed mm/s 160 160 130 130 130 130
Pressing Speed mm/s 12 12 10 10 10 10
Return Speed mm/s 130 130 120 120 120 120
Main Motor Power kW 7.5 7.5 11 11 15 15
X axis stroke mm 500 500 500 500 500 500
X axis speed mm/s 300 300 300 300 250 250
R axis stroke mm 200 200 200 200 200 200
R axis speed mm/s 50 50 50 50 50 50
Outline Size L mm 3700 4500 3700 4500 3700 4500
W mm 1750 1750 1870 1920 1920 1950
H mm 2450 2450 2700 2700 2700 2700
Weight kg 7500 8000 10000 12000 12500 13800
Detailed Photos
Our Service
Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory
After-sales services: 1. 2 years warranty period
2. training how to install and use the brake press machine 3. engineers available to service machinery overseas Contact Ways Ms. Yulia Chen Customer Manager
FAQ 1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For machine in stock, the lead time is within one week.For mass production, the lead time is 20-35 working days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
