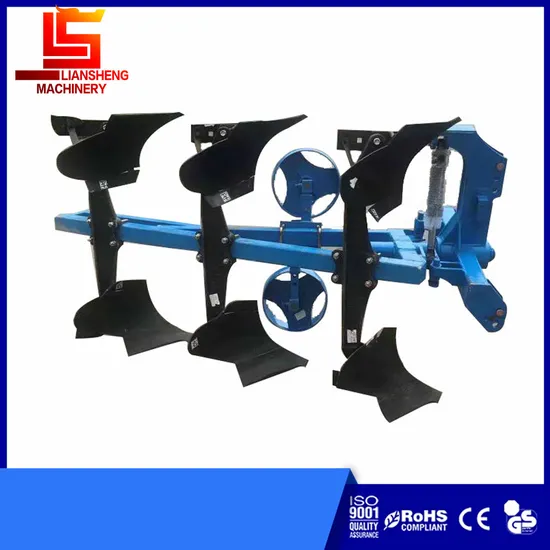

Bar Hydraulic Flip Plow Is Farm Tillage Garden Plow with Reasonable Structure, Strong Rigidity, High-Quality Materials and Beautiful Appearance.

Product Description

Bar Hydraulic Flip Plow Is Farm Tillage Garden Plow With Reasonable Structure, Strong Rigidity, High-quality Materials And Beautiful Appearance.
The hydraulic flipping plow machine has reasonable structure, strong rigidity, high-quality materials and beautiful appearance.
With two-way flip function, saving time and fuel, high efficiency and economy.
It is equipped with a small compound plow, which can cut the surface vegetation in the field, so that the straw and weeds can deeply cover the rot soil.
Hydraulic turning plough is the equipment used with tractor, including suspension frame, turning cylinder, check mechanism, ground wheel mechanism, plough frame and plough body, the forward and reverse plough bodies on the plough frame are driven by the expansion and contraction of the piston rod in the oil cylinder Vertical flip motion operation.
Different tillage widths can be selected according to the specific resistance of the soil

Model	Unit	225	227	325	327	425	427	525	527
Working width	mm	600	600	1000	1000	1200	1400	1500	1750
Working depth	mm	330	350	330	350	330	350	330	350
No. Of Bottom	pcs	2	2	3	3	4	4	5	5
Weight	kg	225	280	350	380	450	480	550	580
Tractor power	hp	30-40	30-40	45-55	55-70	70-85	70-85	80-90	90-110
Linkage		Standard three point mounted

Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China
