12V 24V DC to AC Inverter Charger 110V 220V 3000 Watt 1000 Watts 5kw 3000W DC AC Car Power Inverter Pure Sine Wave 1kw 1500W
Basic Info.
Model NO.
WHP-1500
Output Power
>1000W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Max. Output Efficiency
90%
Output Waveform
Pure Sine Wave
DC Reverse Connection Protection
Fuse Burnt
Working Temperature
-10ºC~50ºC
Unit Size
199mm*106mm*60mm
N.W/G.W
0.8kg/1.06kg
Transport Package
Carton or Plywood Case
Specification
199mm*106mm*60mm
Trademark
Weho
Origin
Zhejiang
Production Capacity
50000/Year
Packaging & Delivery
Package Size
33.50cm * 18.00cm * 7.60cm
Package Gross Weight
4.000kg
Product Description

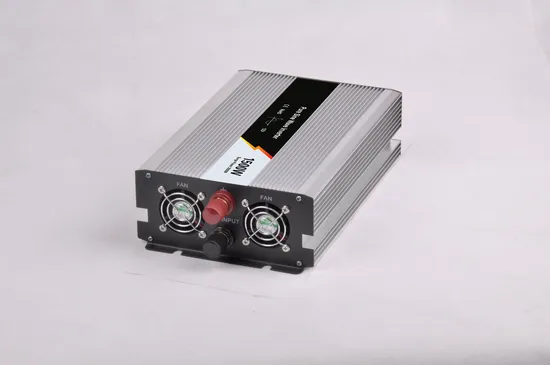

12v 24v dc to ac inverter charger 110v 220v 3000 watt 1000 watts 5kw 3000w dc ac car power inverter pure sine wave 1kw 1500wDetailed Photos
| Model | P-1500W-12V | P-1500W-24V | P-1500W-48V |
| Output Power | 1500W | ||
| Peak Power | 3000W | ||
| DC Input Voltage Range | DC12V(9.5V-15.5V) | DC24V(19V-31V) | DC48V(38V-62V) |
| AC Output Voltage (Single Choice) | 100V/110V/120V/220V/230V/240V | ||
| Unload Current | ≤0.6A | ≤0.3A | ≤0.2A |
| Output Frequency | (50Hz±2Hz) or (60Hz±2Hz) | ||
| Output Waveform | Pure sine wave | ||
| Display | LED or LCD display | ||
| USB Output Votlage / Current | 5V 2A (Support QC3.0 fast charge up to 18W) | ||
| Max. Output Efficiency | 90% | 92% | 95% |
| Low Voltage Protection | "Alarm ""Bi"" with 2s interval +red and green lights flashing alternately restart automatically when voltage recover" | ||
| Over Voltage Protection | " Alarm ""BiBi"" with 1s interval +red and green lights flashing alternately restart automatically when voltage recover" | ||
| Over Load Protection | "Alarm ""Bi"" continously +red light flashing / restart automatically when load power recover; If it is closed after twice recover, it need restart manually." | ||
| Over Temp Protection | " Alarm ""BiBiBi"" with 1s interval +red and green lights flashing alternately restart when temp recover" | ||
| Short Circuit Protection | yes | ||
| DC Reverse Connection Protection | Fuse burnt | ||
| Low Voltage Alarm Range | 10.5v±0.5v | 21v±0.5v | 42v±0.5v |
| Low Voltage Protection Range | 9.5v±0.5v | 19v±0.5v | 38v±0.5v |
| Low Voltage Recover Range | 12v±0.5v | 23v±0.5v | 46v±0.5v |
| Over Voltage Protection Range | 15.5v±0.5v | 31v±0.5v | 62v±0.5v |
| Over Voltage Recover Range | 14v±0.5v | 28v±0.5v | 56v±0.5v |
| Working Temperature | -10ºC~50ºC | ||
| Cooling Method | Fan cooling (Temperature control) | ||
| Unit Size | 335mm*180mm*76mm | ||
| N.W/G.W | 3.42kg/4kg | ||
