Sc/Upc 2mm 3mm Single Mode Simplex Fiber Optic Connector Kit

Product Description

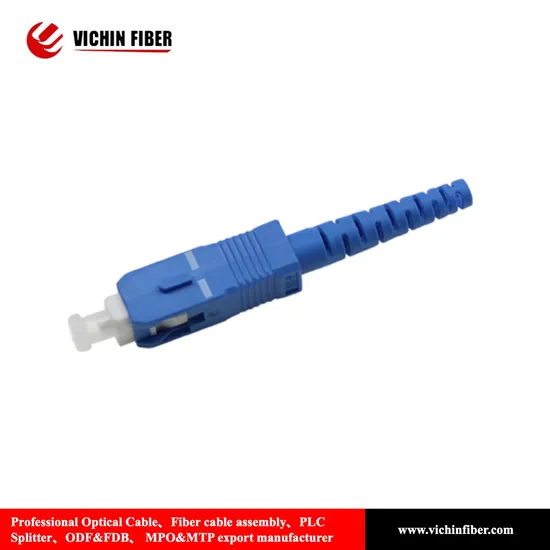

SC/UPC 2mm 3mm Single Mode Simplex Fiber Optic Connector Kit
--Detail Specification --

Fiber Mode	SM(singlemode), MM(multimode)
Fiber Diameter	125um ( G652 ,G657 )
Polish Type	UPC, PC, APC
Insertion loss	Average value≤0.25 dB,max value≤0.3 dB
Fiber cable type	0.9mm/2.0mm/3.0mm
Endurance	100times re-connections, ≤0.3dB
Operation temperature:	-40ºC - 75ºC
OME	Yes
Weight	3.5g

Connectors are made of ceramic, metal, plastic and so on. Each connector has a different color frame
and tail sleeve for selection. Through solidification grinding and other processes, optical fiber connectors
are used to make jumpers or tail fibers with various types of optical cables. They are widely used in communication
rooms, home-to-home optical fibers, local area networks, optical fiber sensors, optical fiber communication
systems, optical fiber connection transmission equipment, national defense preparedness and so on.
Features : Corrosion resistance and durability Low insertion loss Various types and colors of tail covers Conforms to IEC 874-10 and ECCBFOC/2.5 and AT&T-ST II standards. Compliance with IEC-61754 Types available: assembled sets of connectors or unassembled pieces of connectors.
